Concave Leveling

  1. NOTE:

    H63545
    H63545-UN-12APR00

    H63546
    H63546-UN-12APR00

    A - Shield

    B - Shield

    C - Shield

    Round bar concave covers (if installed) should be removed prior to beginning concave leveling.

    Remove quick-lock pins and open side shield (A).



  2. Remove quick-lock pins and remove shields (B and C).

  3. H96446
    H96446-UN-20MAY10

    A - Separator Cover

    Remove separator inspection covers (A).



  4. NOTE:

    H96447
    H96447-UN-20MAY10

    A - Cap Screw (4 used)

    B - Separator Grate

    Removing separator grate provides access for rotating rotor.

    Remove cap screws (A) and separator grate (B).



  5. H63912
    H63912-UN-15MAY00

    H63911
    H63911-UN-15MAY00

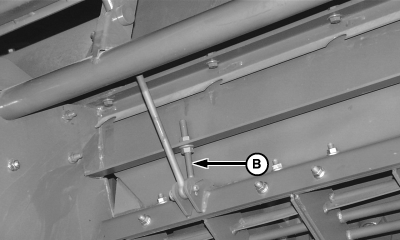

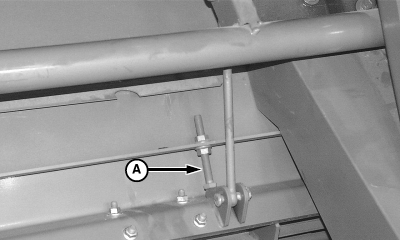

    A - Stop Bolt

    B - Stop Bolt

    Back off stop bolts (A and B).



  6. H51982
    H51982-UN-16FEB99

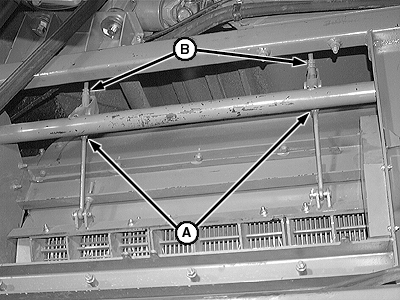

    A - Bottom Nut (2 used)

    B - Top Nut (2 used)

    Loosen jam nuts (A) and back off nuts (B) five turns each.



  7. H96450
    H96450-UN-20MAY10

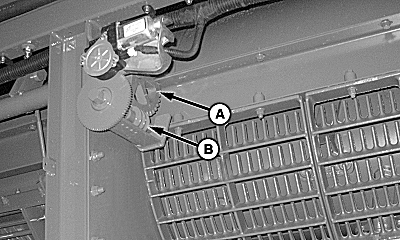

    A - Sector Gear

    B - Worm Gear

    Use concave adjust switch to adjust concave up until worm gear (B) and sector gear (A) are bottomed out in the up position.



  8. H63544
    H63544-UN-12APR00

    A - Handle

    B - Neutral Position

    Shift rotor drive gearcase to neutral position (B) using handle (A).



  9. H65419
    H65419-UN-22NOV00

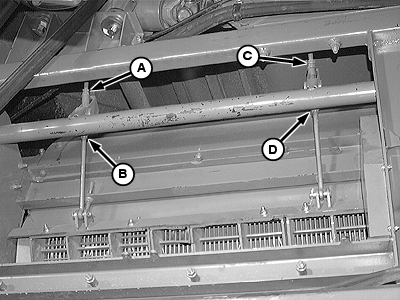

    A - Front Eyebolt Top Nut

    B - Front Eyebolt Bottom Jam Nut

    C - Rear Eyebolt Top Nut

    D - Rear Eyebolt Bottom Jam Nut

    Adjust front eyebolt top nut (A) slowly until elements “tick” concave while rotor is rotating. Back off three complete turns.



  10. Adjust rear eyebolt top nut (C) slowly, until elements “tick” concave while rotor is rotating. Back off three complete turns.

  11. Adjust front eyebolt top nut (A) down slowly until elements “tick” concave. Back off slowly until “tick” stops. As soon as “tick” has stopped back off one complete turn and tighten top jam nut.

  12. Adjust rear eyebolt top nut (C) down slowly, until elements “tick” concave. Back off slowly until “tick” stops. As soon as “tick” has stopped back off one complete turn and tighten top jam nut.

  13. Tighten bottom front concave adjustment nut. Hold front eyebolt top nut (A) with open end wrench and tighten front eyebolt bottom jam nut (B).

  14. Tighten bottom rear concave adjustment nut. Hold rear eyebolt top nut (C) with open end wrench and tighten rear eyebolt bottom jam nut (D).

  15. H65421
    H65421-UN-22NOV00

    Front Stop Bolt

    H65420
    H65420-UN-22NOV00

    Rear Stop Bolt

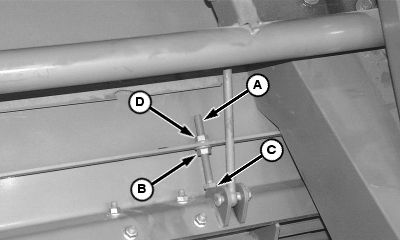

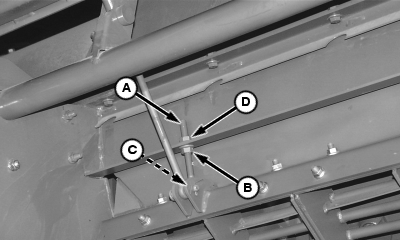

    A - Stop Bolt (2 used)

    B - Jam Nut

    C - Head of Bolt

    D - Jam Nut

    Adjust front and rear concave stop bolt (A) by tightening bottom nut (B) until head of bolt (C) is snug against concave. Tighten top nut (D) while holding bottom nut (B) with open end wrench.



  16. H96447
    H96447-UN-20MAY10

    A - Cap Screw (4 used)

    B - Separator Grate

    Install separator grate (B) and retain with cap screws (A).



  17. Shift rotor drive gearcase to desired position.

  18. Install separator inspection covers and shields.

  19. Calibrate concave position from inside cab. (See Calibration Procedures section.)
