Cleaning Fan Belt—Replacing

H62321-UN-24JAN00

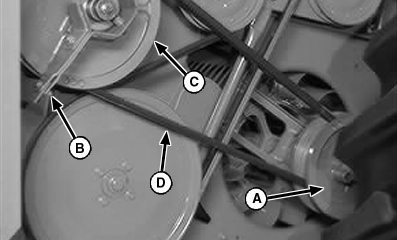

A - Bottom Sheave

B - Support Arms

C - Upper Sheave

D - Belt

Disengage separator, shut OFF engine and remove key.

CAUTION: Shut OFF engine, set parking brake and remove key.

Wedge bottom sheave (A) open.

Disconnect support arms (B) and swing arms away.

Remove upper sheave (C) and pull belt (D) over lower sheave.

Install replacement belt, remove wedge and connect support arms.

Check adjustment of cleaning fan speed.
