Standard Speed High Capacity Feed Accelerator Belt—Replacing

CAUTION:

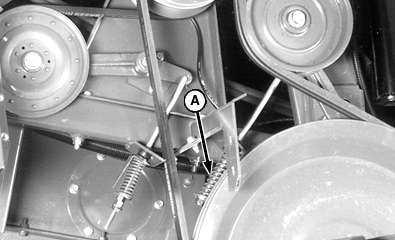

H62317
H62317-UN-24JAN00

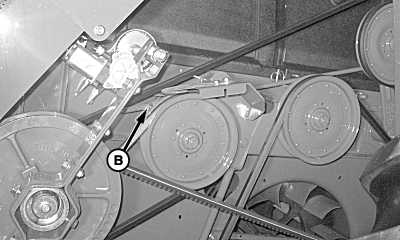

H96475
H96475-UN-20MAY10

A - Front Jackshaft Belt Idler

B - Auger Belt Idler

Shut OFF engine, set parking brake and remove key.

Remove tension on front jackshaft belt idler (A). Remove tension on shoe, fan and conveyor auger belt idler (B).

Remove both belts from countershaft sheaves to allow removal of feed accelerator belt.

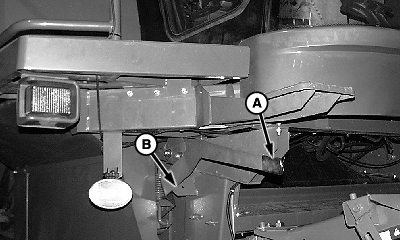

H74782
H74782-UN-14JAN03

A - Lever

B - Bracket

Remove belt tension from accelerator belt by pushing lever (A) up and out of notch in bracket (B).

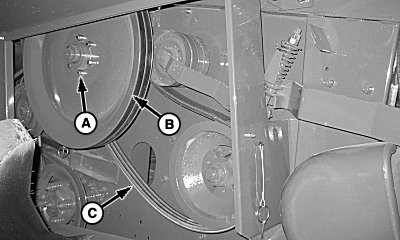

H86422
H86422-UN-28JUL06

A - Cap Screws (6 Used)

B - Sheave

C - Feed Accelerator Belt

Remove cap screws (A) and sheave (B).

Remove feed accelerator belt (C) and install replacement belt.

Install sheave and retain with cap screws.

Push lever up and into notch in bracket. Adjust belt idler tension so washer is positioned between end of gauge and bottom of step.

Install shoe, fan and conveyor auger belt and front jackshaft belt. Adjust tension rod for each belt so washer is positioned between end of gauge and bottom of step.

OUO6075,0000766-19-20100520
