Shoe, Fan and Conveyor Auger Belt—Adjusting

CAUTION:

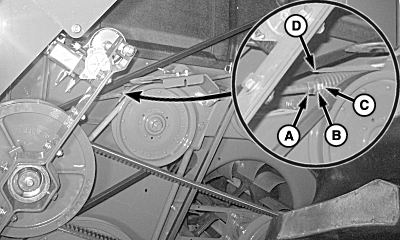

H96451
H96451-UN-20MAY10

Shield Removed for Clarity

A - Lock Nut

B - Nut

C - Washer

D - Gauge

Shut OFF engine, set parking brake and remove key.

Loosen lock nut (A).

Tighten nut (B) until washer (C) is positioned between end of gauge (D) and bottom of step. Tighten lock nut.

OUO6075,0000767-19-20100520
