Chaffer or Sieve—Adjusting

H54524
H54524-UN-07MAY99

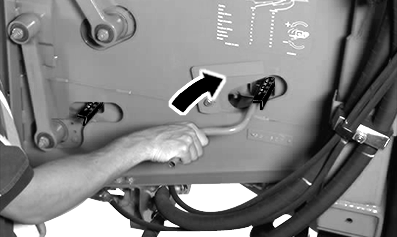

Insert adjusting tool through slot in side sheet and engage slotted end of crank with cross pin in chaffer or sieve.

Turn crank to right to open or to left to close louvers.

Observe setting on outside indicator of chaffer or sieve for direct readout of louver opening.
