Clean Grain Elevator Drive Top Access Doors

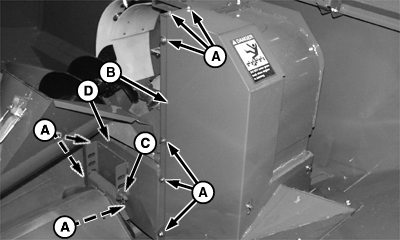

H69294
H69294-UN-16JUL01

A - Cap Screws

B - Door

C - Cross Auger Pin

D - Door

Remove cap screws (A) from door (B).

Remove cross auger pin (C) and door (D).

OUO6075,0000774-19-20070404
