Upper Tailings Auger Drive Chain—Adjusting

CAUTION: Shut OFF engine, set parking brake and remove key.

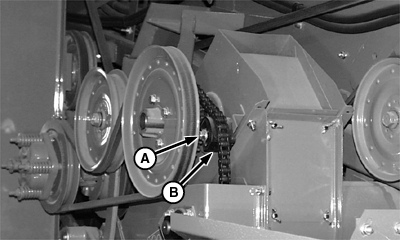

H62189
H62189-UN-13JAN00

A - Cap Screw

B - Block

Loosen cap screw (A) and adjust block (B) to tighten chain. Tighten cap screw when chain is tight.

OUO6075,000077B-19-20070320
