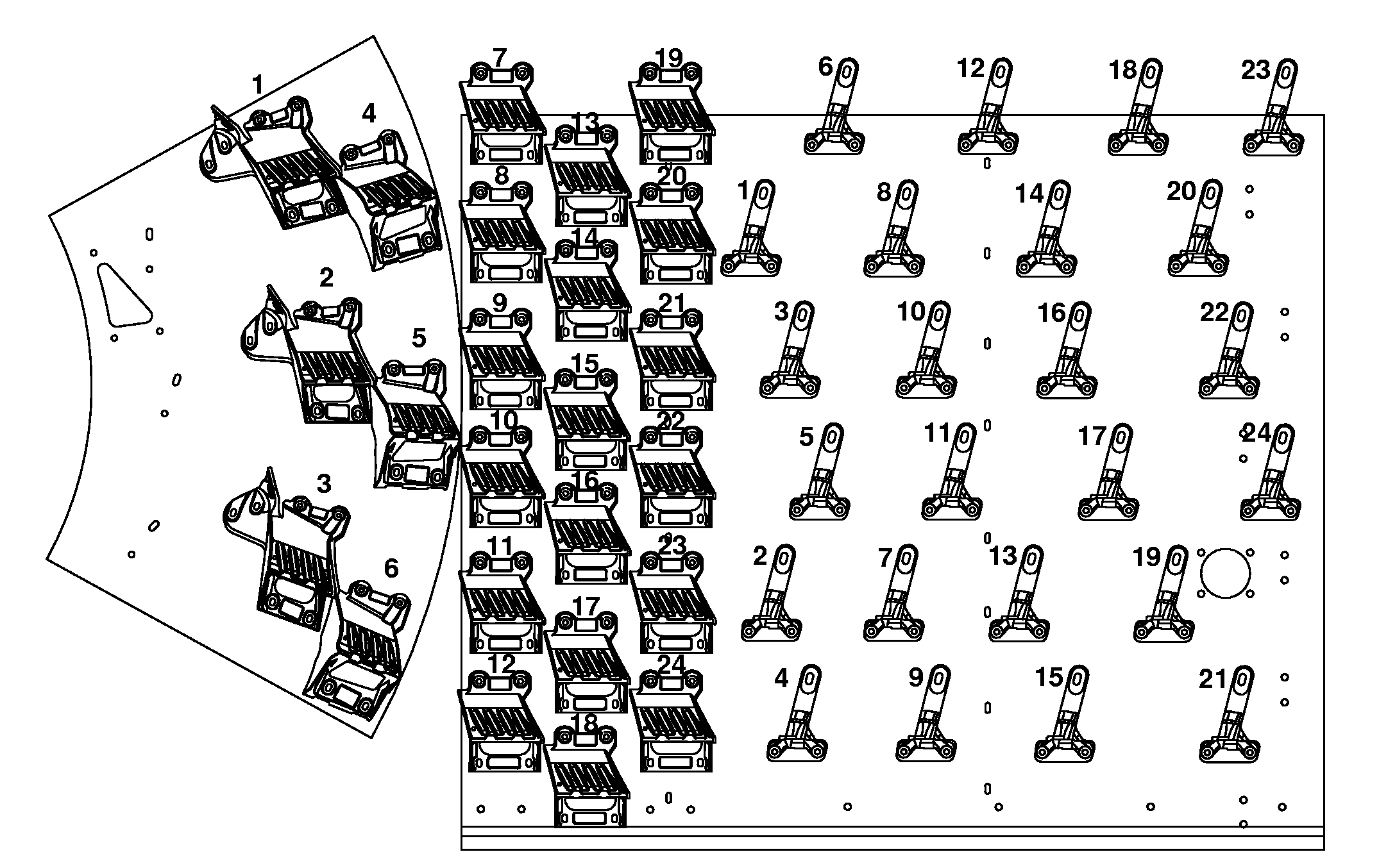

Threshing Element and Separator Tine Location (Rice Configuration Option)

NOTE:

H82364
H82364-UN-03FEB05

For best performance in tough material handling and tough threshing conditions operate with all 24 threshing elements installed. To reduce rotor power or improve straw quality, remove elements in groups of three (7 & 9 & 11, 13 & 15 & 17, 20 & 22 & 24 specified elements that have been removed will have an “O” stamped into the rotor) starting in the front of the rotor.
