Chopper Vanes—Adjusting

CAUTION: Shut OFF engine, set parking brake and remove key.

NOTE: If factory vane settings do not produce adequate spread width or even distribution, adjustments can be made to vane settings.

Vanes are factory set for 9.2 m (30 ft.) platforms.

H80240
H80240-UN-09FEB04

H87235
H87235-UN-19JAN07

A - Vanes

B - Nuts

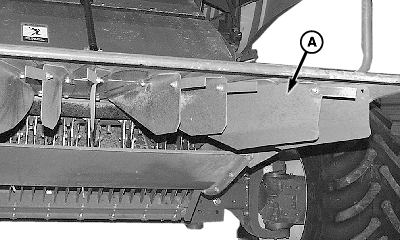

Adjust vanes (A) to control distribution of straw across cut crop.

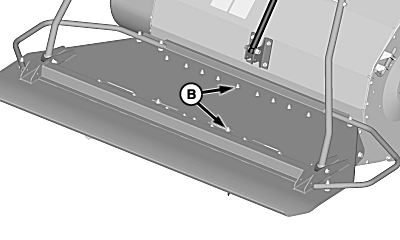

Loosen nuts (B) and adjust outer vane ends in slots. Tighten nuts.
