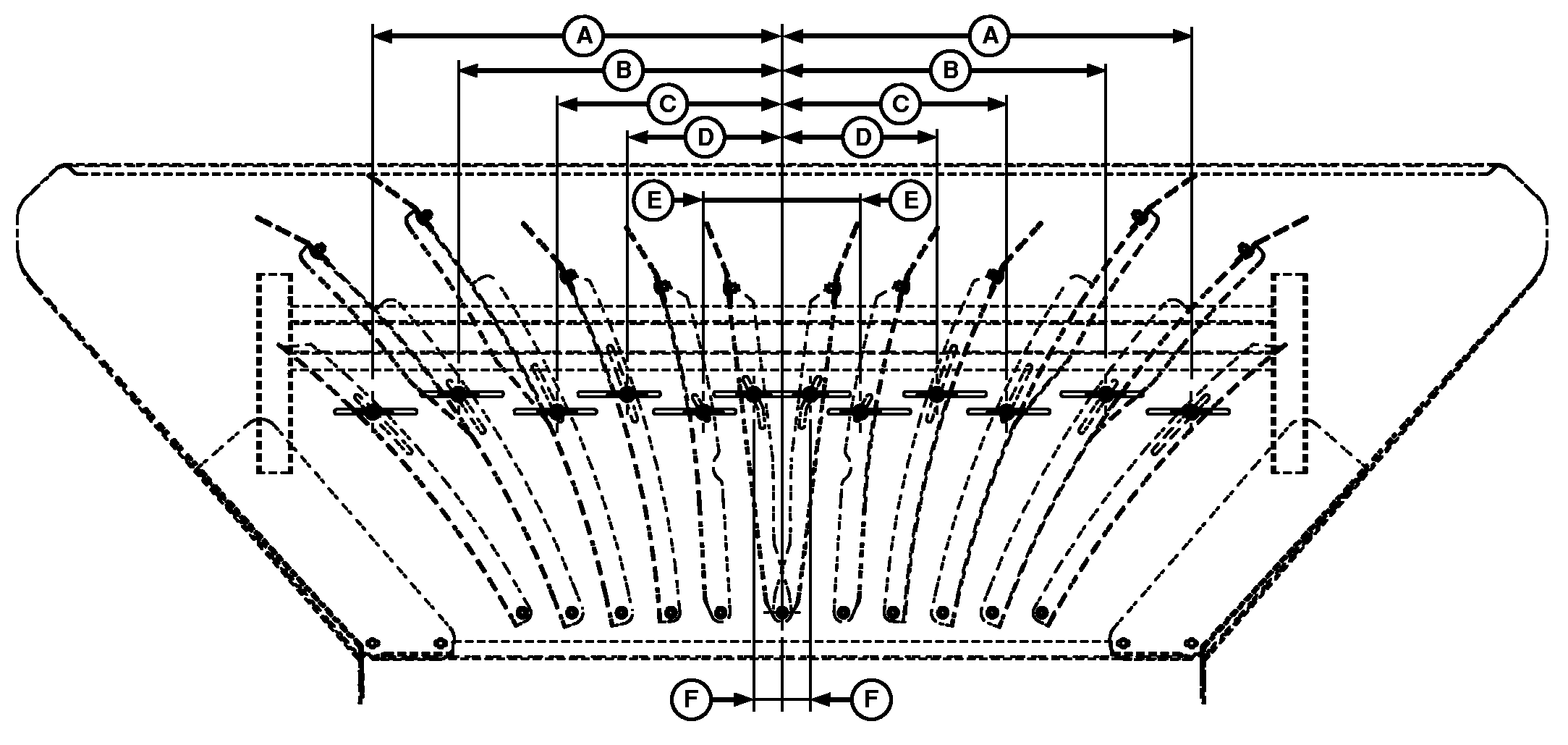

Chopper Settings For 9.2 m (30 Ft.) Platforms
A - 693 mm (27.3 in.)
B - 548 mm (21.6 in.)
C - 382 mm (15 in.)
D - 262 mm (10.3 in.)
E - 133 mm (5.2 in.)
F - 48 mm (1.9 in.)
