Crop Diverter

IMPORTANT: To prevent personal injury or machine damage do not move crop diverter handle when machine is running.

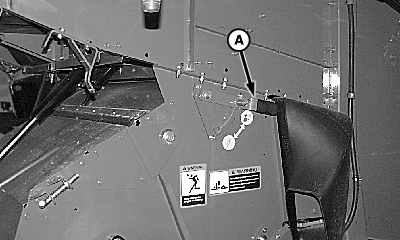

H80259-UN-09FEB04

A - Crop Diverter Handle (Corn Position)

Corn Position

When harvesting corn or sunflowers, crop diverter handle (A) should be in “UPPER” position. The crop diverter protects the cleaning shoe from damage by preventing material from being thrown forward.

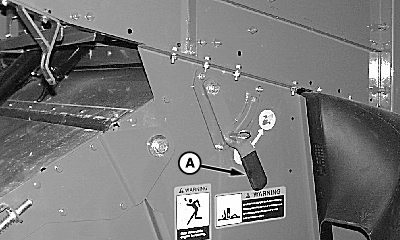

H80260-UN-09FEB04

A - Crop Diverter Handle (Small Grain Position)

Crop Diverter — Small Grain Position

IMPORTANT: To prevent personal injury or machine damage do not move crop diverter handle when machine is running.

When harvesting small grains, crop diverter handle (A) should be in “LOWER” position. When servicing cleaning shoe, crop diverter handle can be placed in this position to allow better access.
