PowerCast Tailboard—Adjusting (Optional)

CAUTION:

H87331
H87331-UN-01FEB07

H87332
H87332-UN-01FEB07

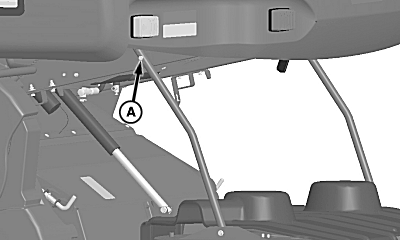

A - Cap Screw (2 Used)

Do not let anyone stand behind spreading tailboard while it is running. Shut OFF engine, set parking brake and remove key before adjusting.

For best performance, powered tailboard should always run level or parallel to ground. Depending on tire combinations, it may be necessary to raise or lower tailboard.

To adjust tailboard, park machine on level ground. Remove cap screw (A) on both sides of tailboard arm and raise or lower tailboard to level position.

IMPORTANT:

H87328
H87328-UN-31JAN07

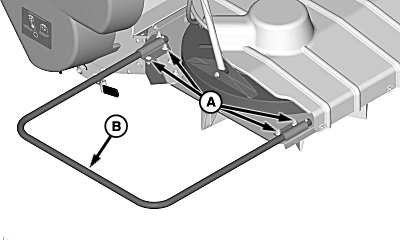

A - Cap Screws (4 Used)

B - Hoops

Powered tailboard is equipped with protective hoops. These hoops can be adjusted for shipping or storage by loosening cap screws on both sides and pushing hoops toward center of machine. When separator is engaged, hoops should ALWAYS be in extended position as shown.

For shipping or storage position loosen cap screws (A) on both sides and push hoops (B) toward center of machine.
