Spreader to Windrow Position

CAUTION: Shut OFF engine, set parking brake and remove key. Before performing service or maintenance on raised spreader, fully insert lock-out pin into place.

IMPORTANT: Spreader hoop (A) should always be in the “down” position as shown while operating.

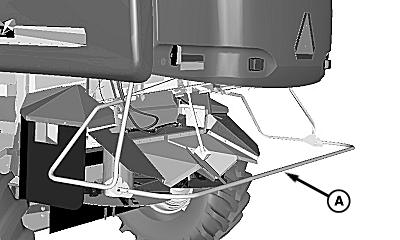

H82434
H82434-UN-10FEB05

Spreader Hoop Down Position

A - Spreader Hoop

Spreader can be rotated upward into windrow position to allow material to discharge into a windrow.

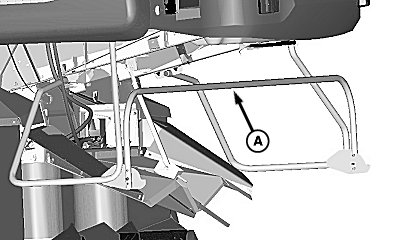

H82435
H82435-UN-10FEB05

A - Spreader Hoop

Raise spreader hoop (A) to locked position as shown to access spreader or when raising spreader to windrow position.

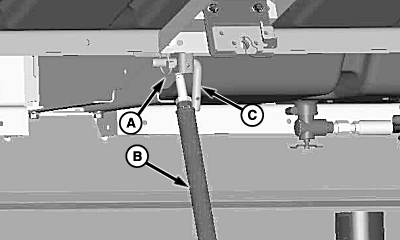

H82437
H82437-UN-10FEB05

A - Quick-Lock Pin

B - Tube

C - Pin

Remove quick-lock pin (A).

Hold onto tube (B) and remove pin (C). Lower tube forward.

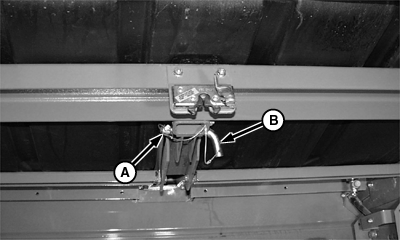

H62204
H62204-UN-18JAN00

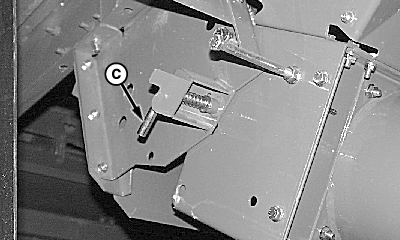

H80245
H80245-UN-09FEB04

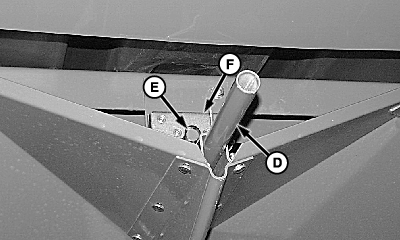

H80246
H80246-UN-09FEB04

A - Quick-Lock

B - Pin

C - Pin

D - Pin

E - Latch Assembly

Place pin (B) back into storage position and retain with quick-lock pin (A).

CAUTION: Before performing service or maintenance on raised spreader, fully insert lock-out pin (C) into place.

Raise spreader until pin (D) is fully engaged in the latch assembly (E).

NOTE: Set spreader speed to zero, refer to Spreader Speed Adjust Switch in CommandTouch Armrest Console section for further information.

OUO6075,00007AB-19-20070423
