Spreader—Lowering

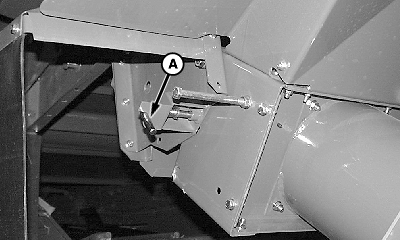

H80247
H80247-UN-09FEB04

A - Pin

Pull pin (A) out, rotate and place on bracket to unlock spreader from raised position.

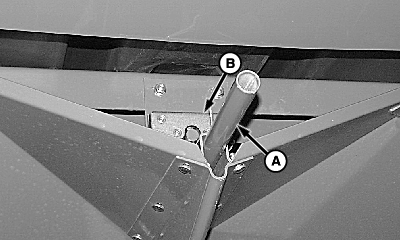

H80248
H80248-UN-09FEB04

A - Spreader Handle

B - Latch

Hold onto spreader handle (A), release latch (B) and lower spreader.

H82437
H82437-UN-10FEB05

A - Quick-Lock Pin

B - Tube

C - Pin

Remove quick-lock pin (A) and pin (C).

Pull tube (B) up into guide and retain with pin and quick-lock pin.

NOTE: Increase spreader speed until desired spread width is reached, refer to Spreader Speed Adjust Switch in CommandTouch Armrest Console section for further information.
