Grain Tank Drain Holes
H62226-UN-19JAN00

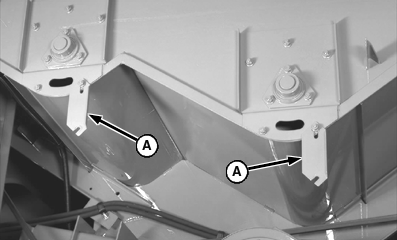

Standard Grain Tank
H80946-UN-27MAY04

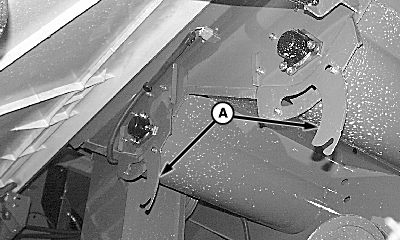

High Unload Rate Grain Tank
A - Drain Hole Doors
Grain tank drain hole doors (A) are located on right-hand end of both cross augers and must be opened during storage or for cleaning grain tank.Loosen cap screws and slide doors away from drain holes.
OUO6075,00007B6-19-20070423 |
