Grain Tank Loading Auger Deflector
CAUTION: Shut OFF engine, set parking brake and remove key.

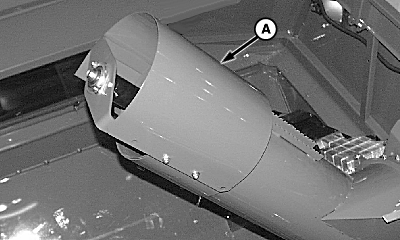

H80881-UN-11MAY04
A - Deflector
Position deflector (A) as needed.Out or up position:
- Windy conditions when harvesting crops like grass seed or rape.
- Corn—Grain tank will fill to the left and to the rear.
In or down position:
- Grain—Grain tank will fill to the right and to the front.
OUO6075,00007C2-19-20070319 |
