Unloading Auger Drive Chain—Adjusting

CAUTION: Shut OFF engine, set parking brake and remove key.

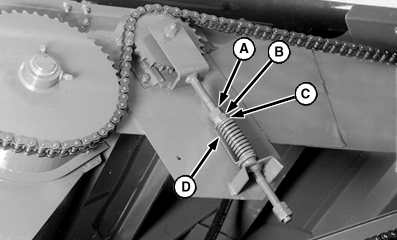

H62229
H62229-UN-19JAN00

Standard Grain Tank Tensioner

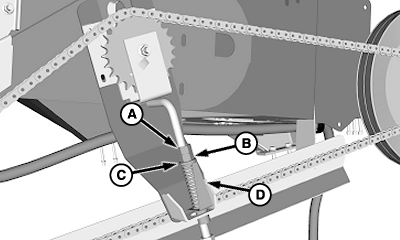

H82823
H82823-UN-21MAR05

High Unload Rate Tensioner

A - Locking Nut

B - Adjusting Nut

C - Washer

D - End of Gauge

Loosen locking nut (A). Tighten adjusting nut (B) until washer (C) aligns with end of gauge (D). Tighten locking nut.

OUO6075,00007C5-19-20070423
