Power Folding Auger (Optional) Actuator Failure—Removing

CAUTION: Park machine on a flat level surface before removing actuator.

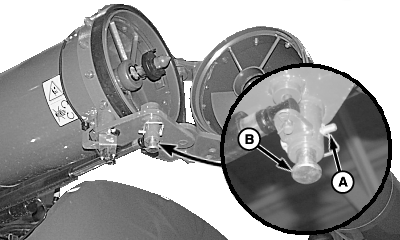

H83547
H83547-UN-20MAY05

Neutral Position

A - Quick-Lock Pin

B - Pin

If unloading auger actuator motor fails, auger can still be manually folded and unfolded, until the actuator is replaced.

Swing unloading auger to desired position (folded or unfolded) and remove quick lock pin (A). Position pin (B) to the upmost position to lock auger in desired position.

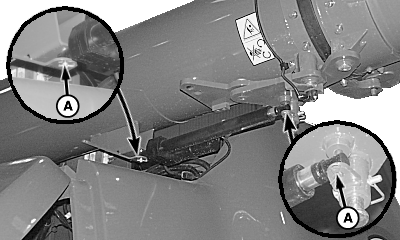

H83548
H83548-UN-28JUN05

A - Spring Pins and Pins

Disconnect wiring harness from actuator. Remove spring pins and pins (A) from actuator motor and replace actuator motor.

OUO6075,00007CF-19-20070423
