Cab Headlights—Adjusting
CAUTION: Raise feeder house and lower safety stop before replacing or adjusting headlights.
NOTE: The vertical adjustment of the light assemblies can be rotated up or down in the three notch positions to achieve the correct lighting angles.

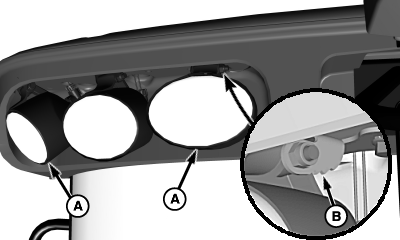

H83515-UN-19MAY05
A - Light Assemblies
B - Notches
Vertical Adjustment: Light assemblies (A) can be rotated up or down in notches (B).

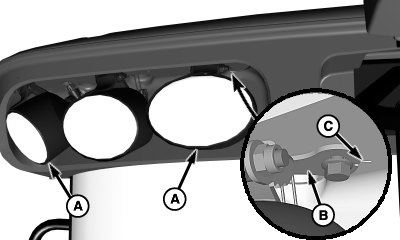

H83516-UN-19MAY05
A - Light Assemblies
B - Bracket
C - Indicator Line
Horizontal Adjustment: To adjust light assemblies (A), loosen cap screws and rotate bracket (B) until notch aligns with indicator line (C).OUO6075,00007EB-19-20070319 |
