Contour-Master Tilt Switch (Black)

NOTE:

H85896
H85896-UN-10MAY06

H86975
H86975-UN-20NOV06

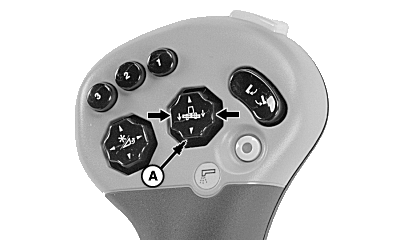

A - Contour-Master Tilt Switch

B - Road Transport Disconnect Switch

On combines equipped with a level-land or Contour-Master feeder house operating in conjunction with a 600D Draper platform that is equipped with the Dual Zone Float attachment, the Contour-Master tilt switch provides independent adjustment of the float pressure in the right and left float arm and gauge wheel (if equipped) cylinders.

Contour-Master tilt switch (A) allows operator to tilt feeder house to the left or right.

System Requirements:

  • Road transport disconnect switch (B) must be in field position.

Press right side of Contour-Master tilt switch to tilt feeder house to the right or press left side of Contour-Master tilt switch to tilt feeder house to the left.

OUO6075,0000816-19-20100624
