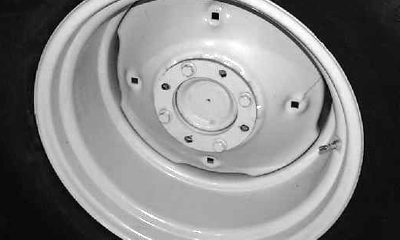

Rear Wheel Bolt Torque

H57469
H57469-UN-07JUN99

Each time a rear wheel is removed, torque wheel bolts to specification. After one hour of operation torque wheel bolts again to specification.

ItemMeasurementSpecification
Wheel Bolts (Non-Powered Axles)Torque (Dry)315 N˙m (232 lb-ft)
Wheel Bolts (Powered Axles)Torque (Dry)200 N˙m + 1/4 turn (150 lb-ft + 1/4 turn)

NOTE: Mount rear tires with the offset “in” and valve stems to the outside.

Refer to decal on tire for proper torque sequence.

OUO6075,0000826-19-20070315
