Back-Up Alarm

IMPORTANT: During cold weather start-up (below 0°C (32°F) back-up alarm may not activate on reverse travel until hydraulic oil is sufficiently warmed. After start-up allow engine to run at low idle for five minutes in order to warm oil.

H83433
H83433-UN-11MAY05

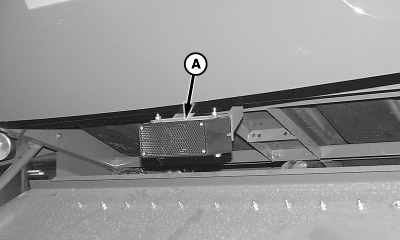

A - Back-Up Alarm

If multifunction control handle is moved rearward while engine is running, back-up alarm (A) sends an acoustical signal to warn others around the machine that the operator is backing up.

OUO6075,0000838-19-20070409
