Transporting Machine on a Trailer

1. CAUTION:


   H87216-UN-17JAN07

   A - Folding Auger Switch

   Avoid collisions with other roadway users. Before transporting on a public roadway check and follow local regulations regarding the use of lights, flags, over-width signs, pilot vehicles and other requirements for wide loads.

   Empty grain tank and swing unloading auger to storage position.

---




2. Use folding auger switch (A) (if equipped) to fold unloading auger rearward to transport position.

3. Remove header and outside dual wheels (if equipped).

4.

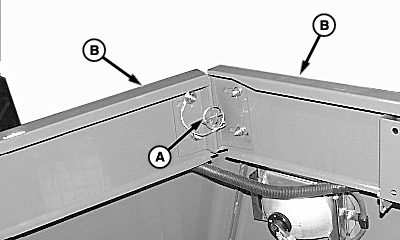

   H76252-UN-30APR03

   A - Quick-Lock Pins

   B - Grain Tank Extensions

   Standard Grain Tank (If Equipped):

   1. Remove quick-lock pin (A) from grain tank extensions (B).

   2. Fold extension to reduce overall height.

---




5.

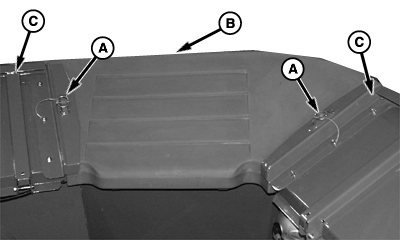

   H82605-UN-10MAR05

   A - Quick-Lock Pins

   B - Grain Tank Corner Extensions

   C - Extensions

   Standard Grain Tank (If Equipped):

   1. Remove quick-lock pins (A) from grain tank corner extensions (B).

   2. Fold extensions (C) to reduce overall height.

---




6.

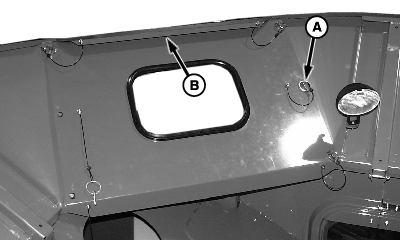

   H75331-UN-26FEB03

   Front Grain Tank Extension Shown

   A - Quick-Lock Pins

   B - Grain Tank Corner Extensions

   High Unload Rate Grain Tank (If Equipped):

   1. Remove quick-lock pin (A) from grain tank extensions (B).

   ---




   2.

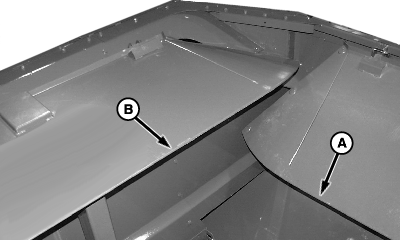

      H75332-UN-26FEB03

      A - Front and Rear Grain Tank Extensions

      B - Left-Hand and Right-Hand Grain Tank Extensions

      Fold front and rear grain tank extensions (A) first, then fold left-hand and right-hand grain tank extensions (B) last to reduce overall height.

---




7.
   H87850-UN-10APR07

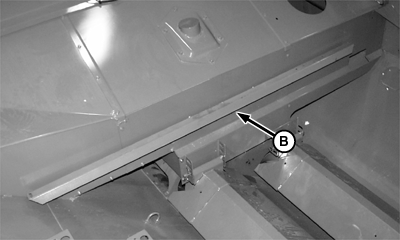

   H62943-UN-03MAR00

   Standard Grain Tank Sample Trough Storage Position

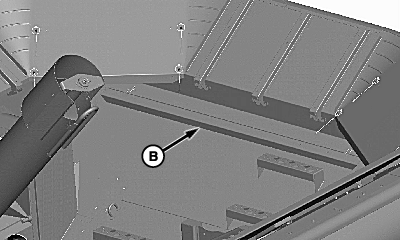

   H75363-UN-27FEB03

   High Unload Rate Sample Trough Storage Position

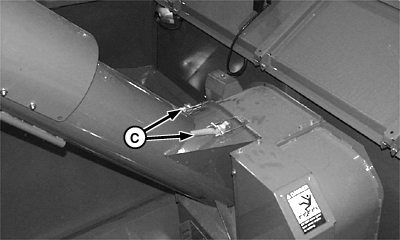

   H62117-UN-06JAN00

   A - Grain Sample Trough

   B - Grain Sample Trough (Storage Position)

   C - Clamps

   Remove grain sample trough (A) and place sample trough in storage position (B).

---




8. Release clamps (C) and lower auger.

9. Drive machine on trailer and put multifunction control handle in neutral.

10. Shut OFF engine, set parking brake and remove key.

11. Fold radio antenna down and retain with hook (if equipped). If hook is not available, retain antenna to cab roof with tape.

12. Swing cab ladder to the full forward position.

13.

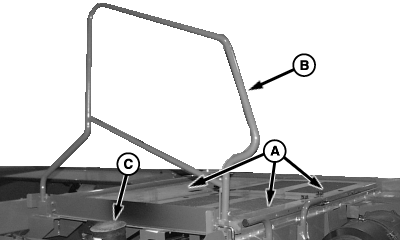

    H83951-UN-12JUL05

    A - Engine Access Doors

    B - Handrail

    C - Muffler Cap

    Lower and latch engine access doors (A) and lower handrail (B).

---




14. Tape muffler cap (C) closed to prevent damage to turbocharger.

15. CAUTION:


    TS249-UN-23AUG88

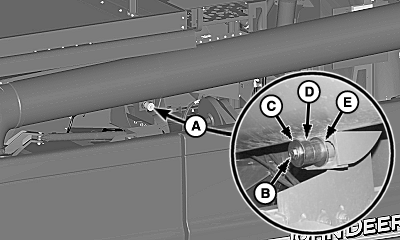

    H85637-UN-05APR06

    A - Location

    B - Cap Screw

    C - Washer

    D - Spacer

    E - Washer

    Possible injury or death to you or others can occur from falling. Use a ladder or equivalent with an appropriate load rating to access location (A) when installing unloading auger retaining cap screw (B). Do not attempt to access location from engine platform.

    Standard Grain Tank:

    1. Retrieve cap screw (B), washer (C), spacer (D), and washer (E) from tool box.

    2. Install hardware as shown to retain unloading auger.

---




16. CAUTION:


    TS249-UN-23AUG88

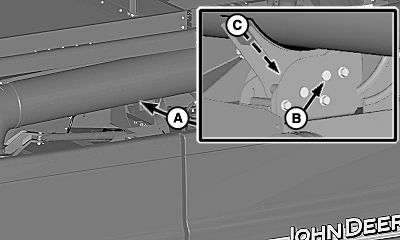

    H85672-UN-05APR06

    A - Location

    B - Pin

    C - Spring Pin

    Possible injury or death to you or others can occur from falling. Use a ladder or equivalent with an appropriate load rating to access location (A) when installing unloading auger retaining pin (B). Do not attempt to access location from engine platform.

    High Unload Rate Grain Tank (Optional):

    1. Retrieve pin (B) and spring pin (C) from tool box.

    2. Install hardware as shown to retain unloading auger.

---




17.

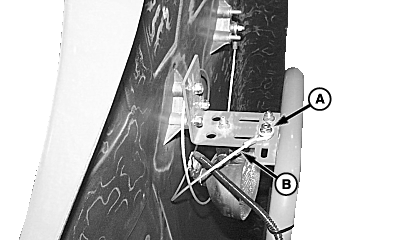

    H83639-UN-02JUN05

    A - Hardware

    B - Cable

    Remove hardware (A) and remove cable (B) from storage position.

---




18.

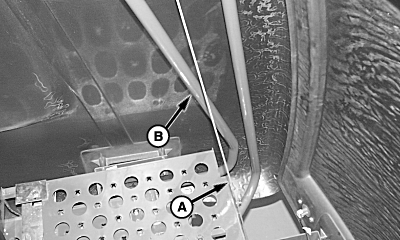

    H83638-UN-01JUN05

    A - Cable

    B - Handrail

    Verify cable (A) is installed on inside of handrail (B).

---




19.

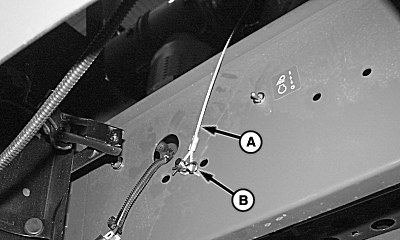

    H83640-UN-01JUN05

    A - Cable

    B - Spring Pin

    Install cable (A) and retain with spring pin (B).

---




20.

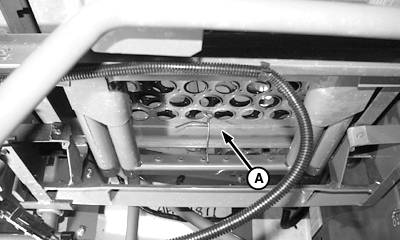

    H61818-UN-11NOV99

    A - Ladder Extension and Platform

    Wire down ladder extension and platform (A).

---




21.
    H81657-UN-13OCT04

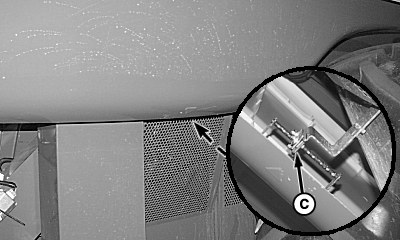

    H83646-UN-02JUN05

    A - Pin

    B - Locking Plate

    C - Door Latch

    Make sure that pin (A) is installed through locking plate (B) and retained with spring pin at front corner of right-hand gull wing door and door latch (C) is fully engaged.

---




22. Wire down door at latch (C).

23.
    H81656-UN-13OCT04

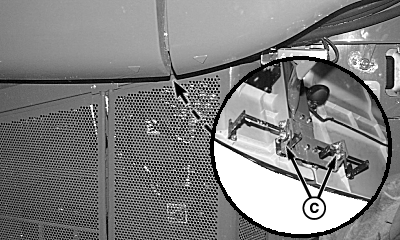

    H83647-UN-02JUN05

    A - Pins

    B - Locking Plate

    C - Door Latches

    Make sure pins (A) are installed through locking plates (B) and retained with spring pins at front and rear corners of left-hand gull wing doors and door latch (C) is fully engaged.

---




24. Wire down door at latches (C).

25.

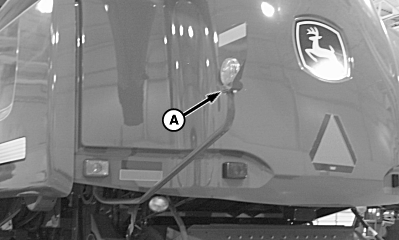

    H83648-UN-02JUN05

    Left-Hand Warning Light Shown

    A - Warning Light

    Swing left-hand and right-hand warning light (A) rearward.

---




26.

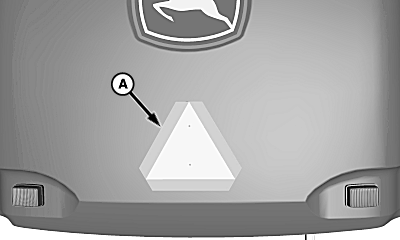

    H82394-UN-08FEB05

    A - Slow Moving Vehicle Emblem

    Cover up slow moving vehicle emblem (A).

---




27. IMPORTANT: Fasten machine to trailer with chains.

    Fasten machine to trailer with chains (see Machine Tie Down Location Decal located on cab ladder for tie down information).
