Discharge Beater Belt—Replacing

CAUTION: Shut OFF engine, set parking brake and remove key.

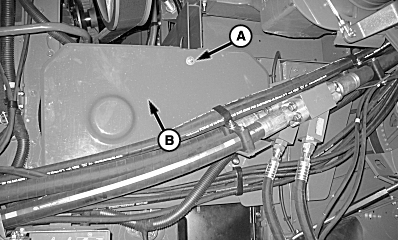

H86546
H86546-UN-08SEP06

A - Cap Screw

B - Shield

Remove cap screw (A) and remove shield (B) from left-hand rear of machine.

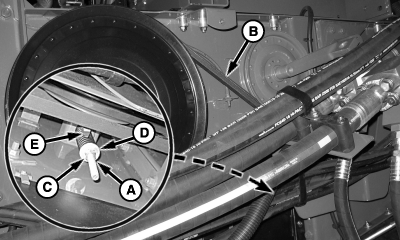

H86548
H86548-UN-08SEP06

A - Lock Nut

B - Belt

C - Nut

D - Washer

E - Gauge

Loosen lock nut (A) and remove belt (B).

Install replacement belt and tighten nut (C) until washer (D) is positioned between end of gauge (E) and bottom of step.

Tighten lock nut and install shield.

OUO6075,000089A-19-20070423
