Batteries—Connecting Booster

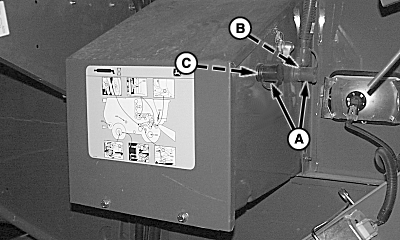

H83463-UN-01JUN05

A - Protective Caps

B - Positive (+) Post

C - Negative (-) Post

CAUTION: Gas given off by batteries is explosive. Avoid sparks near batteries.

IMPORTANT: Never connect jumper cables with key switch ON. Never jump-start with more than 12 volts.

Remove protective caps (A).

First jumper cable must first be connected to positive (+) post of booster battery. Connect other end of positive (+) post (B) to machine battery. Second jumper cable must first be connected to negative (-) post of booster battery. Connect other end of negative (-) post (C) to machine battery.
