Feeder House Slip Clutch
CAUTION: Shut OFF engine, set parking brake and remove key.

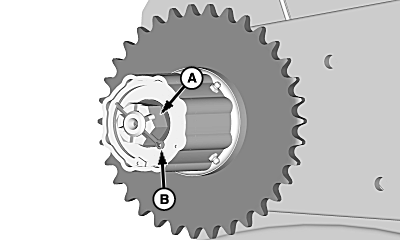

H86504-UN-28AUG06
A - Castle Nut
B - Cotter Pin
The slip clutch protects the upper shaft, conveyor, and drive chains.If the slip clutch is removed, tighten castle nut (A) to specification and install cotter pin (B).
| Item | Measurement | Specification |
| Castle Nut | Torque | 350 N˙m (258 lb-ft) |
OUO6075,00008B2-19-20070320 |
