Feeder House Manual Unlatching

H84881
H84881-UN-04NOV05

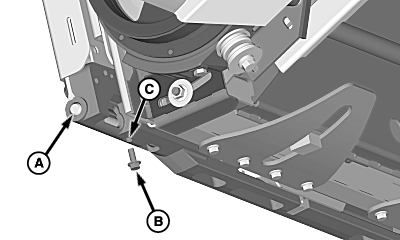

A - Latching Pins

B - Cap Screw

C - Hole

To remove header if shear screw should fail, push latching pins (A) through latch plates and install M12 cap screw (B) in hole (C). Repeat on opposite side.
