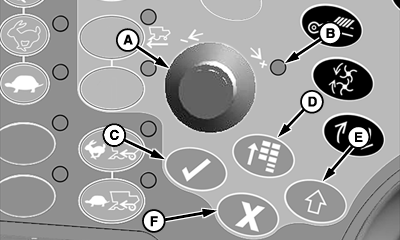

Operator Interface Controls

H86932-UN-20NOV06

A - Selection Dial

B - Indicator Light

C - Confirm Switch

D - Main Menu Switch

E - Display Select Switch

F - Cancel Switch

• Selection Dial (A): allows operator to move the “focus” from item to item on the CommandCenter display. As item is highlighted, a “tool tip” will appear describing what the highlighted object is. Selection dial is also used for data entry to increase/decrease numeric values.
• Indicator Light (Green) (B) : indicates that a switch was selected and now can be adjusted to the operator desired position or setting.
• Confirm Switch (Green) (C): allows operator to select desired “focus” area on CommandCenter display or to confirm an action.
• Main Menu Switch (Green) (D): is used to change the active “application” that the CommandCenter display is running. Items or applications, in the menu included:
  • Combine Settings
  • On Board Diagnostic Troubleshooting
  • Display Settings
• NOTE: Display select switch must be activated to navigate between CommandCenter and GreenStar display (if equipped), see your John Deere dealer for further information.
  Display Select Switch (Green) (E): allows operator to change which display the selection dial controls (CommandCenter or GreenStar display (if equipped)).
• Cancel Switch (Green) (F): allows operator to cancel an action on CommandCenter display at anytime.
