VisionTrak Tailings Sensor Display

H87058
H87058-UN-06DEC06

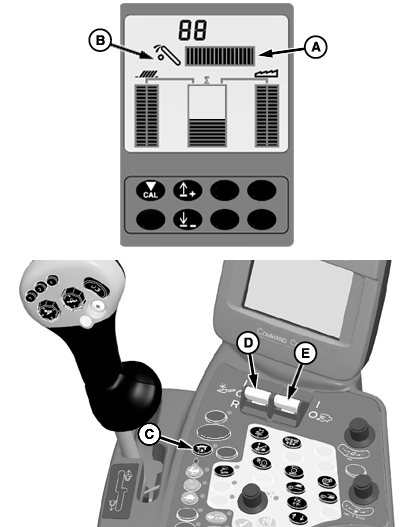

A - Horizontal Bar Graph

B - Tailings Icon

C - Road Transport Disconnect Switch

D - Header Switch

E - Separator Switch

Tailings volume is displayed as a percentage of total full in horizontal bar graph (A) next to tailings icon (B).

Tailing volume is defined as the total amount of material (grain and material other than grain) moving through the tailings elevator.

Requirements:

  • Engine is running.
  • Road transport disconnect switch (C) is in field position.
  • Header switch (D) and Separator switch (E) engaged.
