Change Crop and Seed Sensitivity Size
Crop Menu
H87087-UN-25JAN07
H86933-UN-20NOV06

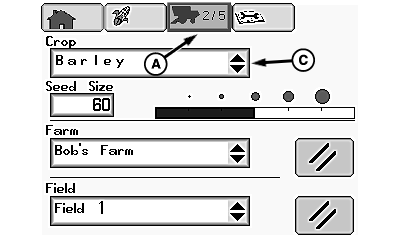

A - Setup Pages Icon
B - Selection Dial
C - Crop Menu
D - Confirm Switch
From setup pages icon (A), rotate selection dial (B) until crop menu (C) is highlighted.Press confirm switch (D) for crop listings.
Rotate selection dial to choose desired crop:
Alfalfa | Navy Beans |
Barley | Oats |
Canola | Peas |
Chickpeas | Popcorn |
Corn | Rice |
Edible Beans | Rye |
Flax | Safflower |
Grass Seeds | Sorghum |
Lentils | Soybeans |
Lupins | Sunflower |
Millet | Wheat-Spring |
Mustard | Wheat-Winter |
Once desired crop is chosen, press confirm switch.
Seed Size
H87088-UN-13DEC06
H87090-UN-25JAN07

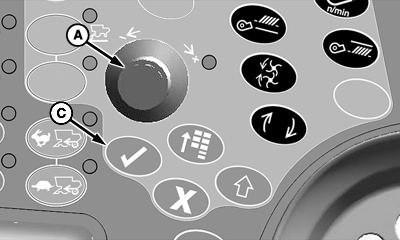

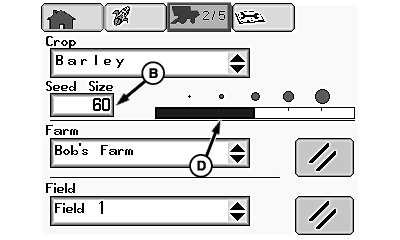

A - Selection Dial
B - Seed Size
C - Confirm Switch
D - Bar Graph
Rotate selection dial (A) until seed size (B) is highlighted.Press confirm switch (C) and rotate selection dial until desired seed size is shown on bar graph (D) (see following table for seed size numbers).
Small Seed (Default 38) | Medium Seed (Default 50) | Large Seed (Default 70) |
|---|---|---|
Alfalfa | Barley | Chickpeas |
Canola | Lentils | Corn |
Flax | Popcorn | Edible Beans |
Grass Seeds | Safflower | Lupins |
Millet | Sorghum | Navy Beans |
Mustard | Wheat | Peas |
Oats | Soybeans | |
Rice | Sunflowers | |
Rye |
Press confirm switch once seed size is determined.
OUO6075,0000A3E-19-20070809 |
