Chopper Blades—Replacing and Configuration

CAUTION: Shut OFF engine, set parking brake and remove key. Before performing service or maintenance on raised chopper, use lift actuator to snap lock-out pins into place.

NOTE: Rotor shown illustrates blade replacement examples for both scoop and paddle blades. Always maintain original factory provided blade pattern.

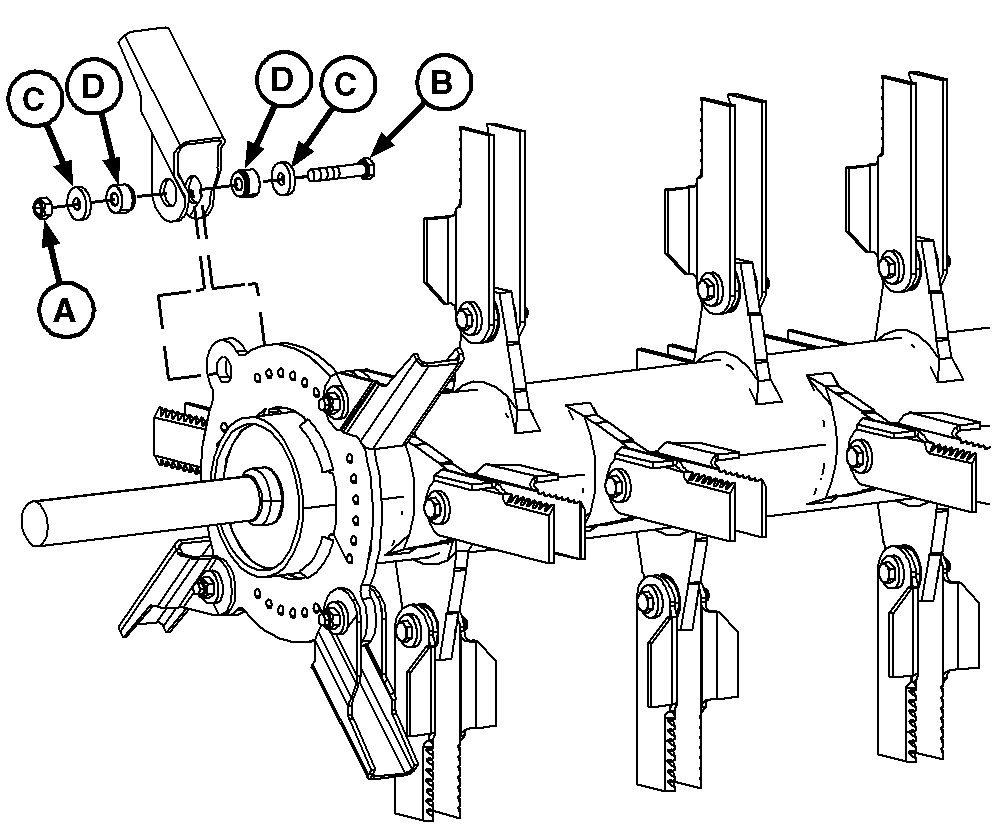

H87281-UN-01AUG07

A - Lock Nut

B - Cap Screw

C - Washers

D - Bushings

NOTE: If removing blades or bushings for inspection purposes, be certain to reinstall blades on SAME support from which they were removed. This must be done to maintain balance. It is a good practice to individually mark each blade before removal.

Remove lock nut (A), cap screw (B), washers (C) and bushings (D).

Inspect and if needed replace blade bushings (D) while replacing blades. See your John Deere dealer for replacement parts.

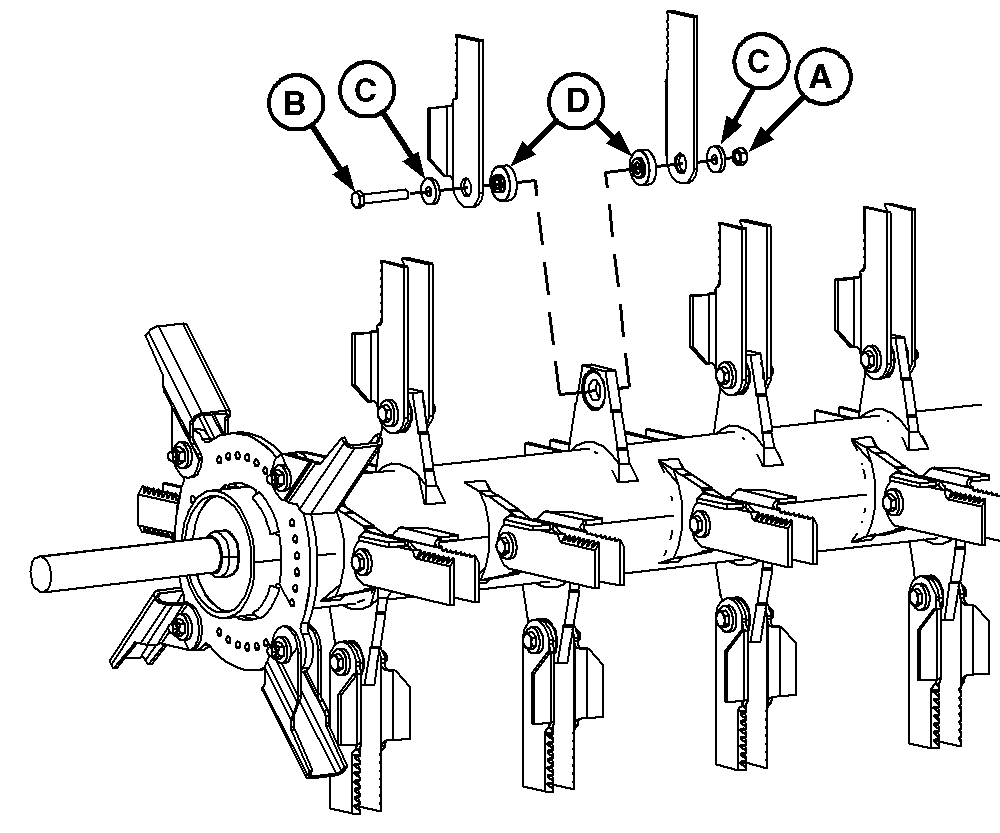

H87282-UN-01AUG07

A - Lock Nut

B - Cap Screw

C - Washers

D - Bushings

NOTE: If removing blades or bushings for inspection purposes, be certain to reinstall blades on SAME support from which they were removed. This must be done to maintain balance. It is a good practice to individually mark each blade before removal.

Remove lock nut (A), cap screw (B), washers (C), and bushings (D).

Inspect and if needed replace blade bushings (D) while replacing blades. See your John Deere dealer for replacement parts.

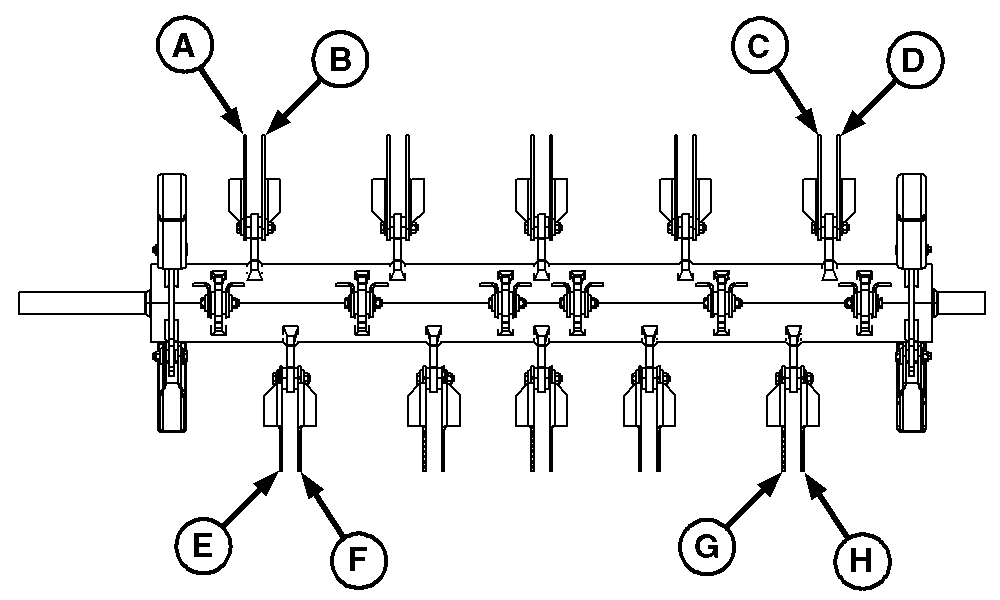

H87283-UN-01AUG07

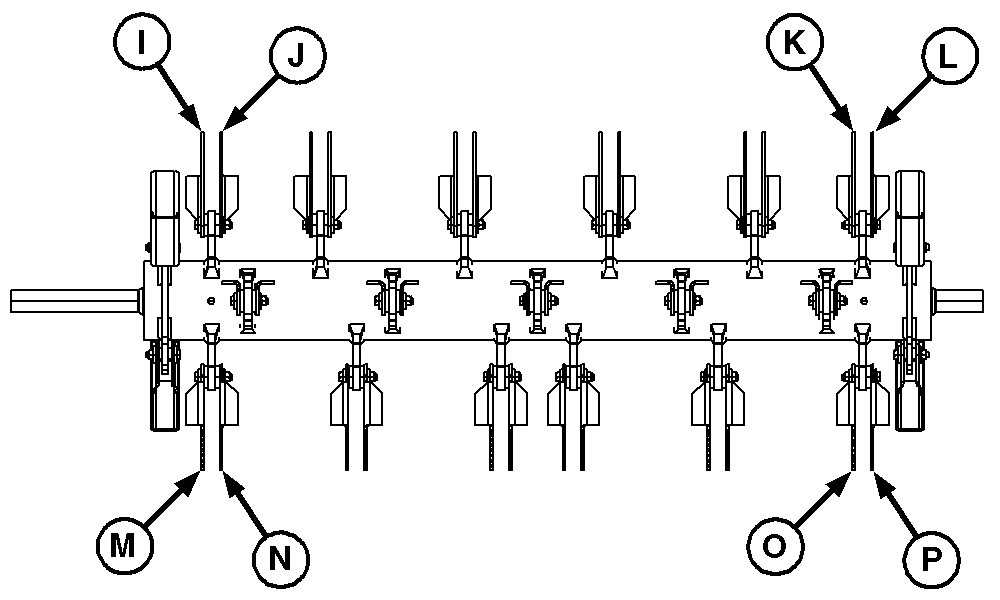

H87284-UN-01AUG07

A—H - Paddle Blades

I—P - Paddle Blades

IMPORTANT: Chopper balance MUST be maintained. Replace BOTH blades on single support and BOTH blades on opposite support (180 degrees). Also replace four blades at opposite end of rotor, at same axial distance from balance ring. Eight blades MUST be installed to replace one broken blade, or all blades can be replaced at one time. This MUST be done to maintain balance.

If blade (A) is broken, replace blades (A—H).

If blade (I) is broken, replace blades (I—P).

H87281-UN-01AUG07

A - Lock Nut

B - Cap Screw

C - Washer

D - Bushing

Replace blade and install cap screw (B), washers (C), bushings (D) and lock nut (A). Tighten nuts to specification.

Item	Measurement	Specification
Chopper Blade Lock Nuts	Torque	60 N·m (44 lb-ft)

H87282-UN-01AUG07

A - Lock Nut

B - Cap Screw

C - Washers

D - Bushings

Replace blade and install cap screw (B), washers (C), bushings (D) and lock nut (A). Tighten nuts to specification.

Item	Measurement	Specification
Chopper Blade Lock Nuts	Torque	60 N·m (44 lb-ft)
