Harvest Smart Feed Rate—Initial Calibration

NOTE: Calibration needs to be done when first time harvesting crops, changing crops, or when field conditions change.

H86967
H86967-UN-20NOV06

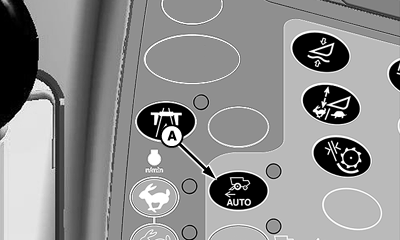

A - Harvest Smart Feed Rate Enable Switch

Press Harvest Smart feed rate enable switch (A) until OFF is shown on CommandCenter display.

H87102
H87102-UN-14DEC06

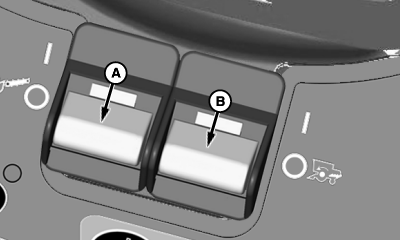

A - Header Engage Switch

B - Separator Engage Switch

Turn header engage switch (A) and separator engage switch (B) ON and lower header.

H87103
H87103-UN-17DEC07

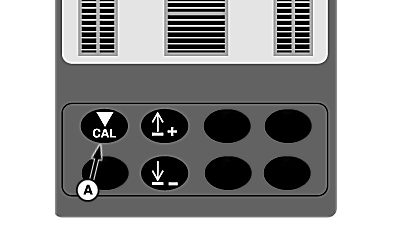

A - Calibration Button

Operate machine in consistent crop at desired loss levels, maintaining that level for 10 – 15 seconds to allow machine to stabilize.

Press calibration button (A) on VisionTrak display. This sets material flow and loss targets for Harvest Smart.

OUO6075,0000A7F-19-20070330
