PowerCast Tailboard (Optional) Rear Shrouds—Removing and Installing

NOTE:

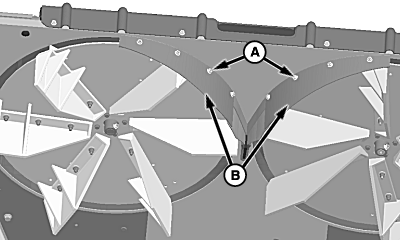

H87339
H87339-UN-01FEB07

A - Nuts (8 Used)

B - Rear Shrouds

In tough, heavy straw conditions, rear shrouds can be removed to spread more material towards center of machine.

Removing Rear Shrouds

Remove nuts (A) and rear shrouds (B) from tailboard and reinstall nuts.

H87341
H87341-UN-01FEB07

A - Quick-Lock Pins

B - Shield

C - Rear Shrouds

D - Wing Nut

Remove and retain quick-lock pins (A) and shield (B).

Install previously removed rear shrouds (C) to weld stud as shown and retain with wing nut (D).

Install previously removed shield and quick-lock pins.

NOTE:

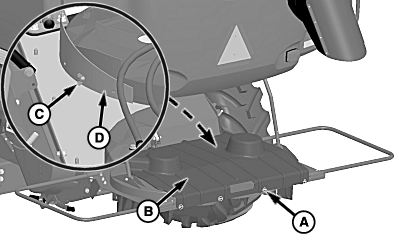

H87342
H87342-UN-01FEB07

A - Quick-Lock Pins

B - Shield

C - Wing Nut

D - Rear Shrouds

When harvesting corn, front and rear shrouds should always be installed to provide optimal material distribution.

Remove and retain quick-lock pins (A) and shield (B).

Remove and retain wing nut (C) and rear shrouds (D).

Reinstall wing nut for future use and install previously removed shield and quick-lock pins.

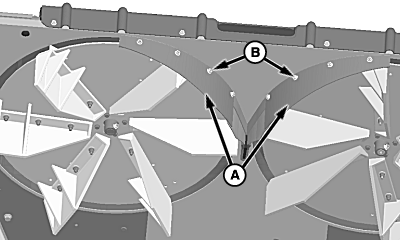

H87340
H87340-UN-01FEB07

A - Rear Shrouds

B - Nuts (8 Used)

Installing Rear Shrouds

Remove nuts from weld strap and install rear shrouds (A) behind welded strap as shown.

Reinstall nuts (A).

OUO6075,0000A9C-19-20080625
