Auxiliary Header Height Control Sensors—Flex Platform (Optional)

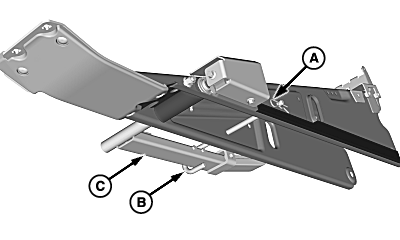

H93999-UN-07MAY09

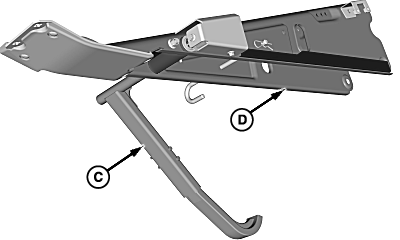

H94000-UN-07MAY09

A - Spring Pin

B - Lock-Out Hook

C - Sensor Arm

D - Float Arm

Sensor arms are attached at front to a float arm (D) where the sensor arm mount actuates a potentiometer.

Sensors contact ground up to a maximum cutting height of 356 mm (14 in.) and control cutting height and lateral tilt of platform.

IMPORTANT: Avoid damage to sensors, place sensors in storage position when transporting or storing platform.

To release sensor arm, remove spring pin (A) and lock-out hook (B). Pull sensor arm down and reinstall lock-out hook with spring pin. Repeat steps for other sensor arms. To store sensor arms, reverse procedure.

See your John Deere dealer.
