Communications/CB Radio Mounting

IMPORTANT:

H94464-UN-14MAY10

H96333-UN-14MAY10

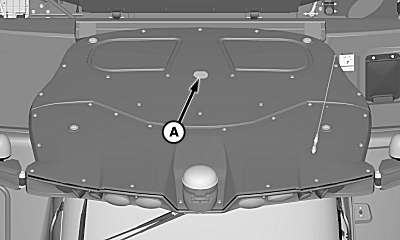

A - Antenna Mount

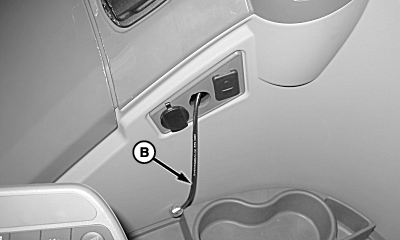

B - Antenna Cable

To install additional radio or CB radio, see your John Deere dealer.

Antenna mount (A) is located in center of cab roof.

NOTE: Remove cup holder to locate antenna cable and route though opening.

Antenna cable (B) is located on right-hand side of cab under armrest console.

IMPORTANT: Be careful not to damage control units located under floor mat when drilling holes or installing self-tapping screws.

Use bracket supplied by radio manufacturer as a template to locate and drill holes as required through floor mat located under armrest console. Use self-tapping screws to mount bracket.

NOTE: Certain broadcast bands may cause interference with the position receiver. Select a different broadcast band or see your John Deere dealer if signal losses are noticed with the position receiver.
