Grain Tank Level and Unloading Rate Offset Setup

H94473-UN-31MAR10

Combine Setup Icon

H94645-UN-05OCT10

H96211-UN-05OCT10

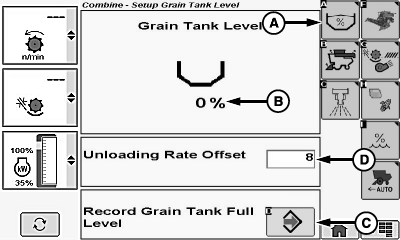

A - Grain Tank Level Setup Icon

B - Grain Tank Level Percentage

C - Enter/Accept Icon

D - Unloading Rate Offset Menu

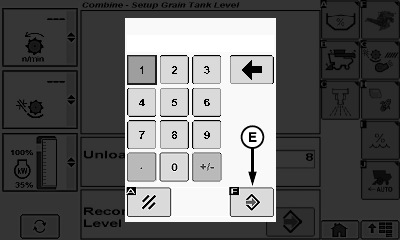

E - Enter/Accept Icon

Grain Tank Level Setup:

NOTE: Allows operator to calibrate desired grain tank fullness level setting.

Touch or press confirm switch when combine setup icon is highlighted.

Touch or press confirm switch when grain tank level setup icon (A) is highlighted.

Grain tank level percentage (B) is a visual guide as the grain tank fills.

Operate machine until desired grain tank level is reached.

Touch or press confirm switch when enter/accept icon (C) is highlighted.

NOTE: Operator can save a lower grain tank setting to avoid spilling grain over the sides when operating in hilly conditions.

Unloading Rate Offset Setup:

NOTE: Different crops, weights, and moisture can affect grain tank level sensor readings. Unloading rate offset value has a range of -1.5 to +1.5.

• Decrease offset value if grain remains in tank when grain tank level reads 0%.
• Increase offset value if grain tank is emptied before grain tank level reads 0%.

Touch or press confirm switch when unloading rate offset menu (D) is highlighted.

Touch or press confirm switch when desired digits are highlighted.

NOTE: Repeat procedure until desired unloading rate offset value is shown.

Touch or press confirm switch when enter/accept icon (E) is highlighted.
