Separator Engage Switch

NOTE:

H94656
H94656-UN-27JAN10

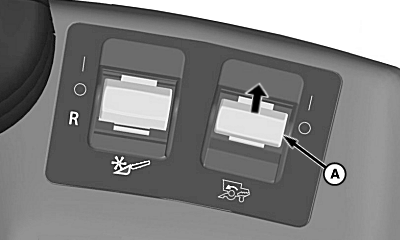

A - Separator Engage Switch

Engage separator prior to engaging header.

Separator engage switch (A) allows separator to be turned ON or OFF. Push down and forward to lock switch in ON position or pull back on switch to turn OFF.

    System Requirements:

  • Engine is running at low idle.
  • Separator engage switch must be OFF to start machine.
  • Road transport disconnect switch must be in field position.

Separator drive speed adjust and cleaning fan speed adjust systems only work when separator is running.

NOTE: Separator disengages when discharge beater speed drops below 300 rpm.
