Reel Position Resume

NOTE:

H96245-UN-03MAY10

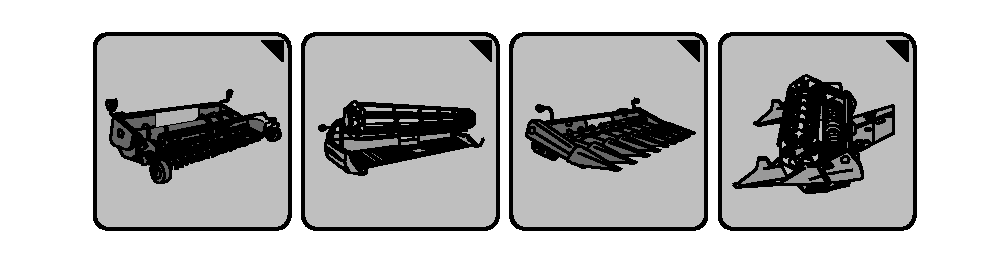

Header Setup Icons

H95942-UN-05OCT10

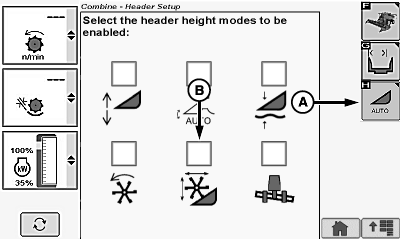

Draper/Platform/Belt Pickup Display

A - Automatic Header Height Modes Icon

B - Reel Position Resume Icon

Allows operator to select position of reel relative to cutterbar and return to that position automatically.

System must be calibrated with each header that is used (see Calibration Procedures section).

Activation buttons 1, 2 or 3 located on the multi-function lever are used to select one of the three different programmable reel positions/deck plate positions.

Enable/Disable System:

Touch or press confirm switch when header setup icon is highlighted.

Touch or press confirm switch when automatic header height modes icon (A) is highlighted.

Touch or press confirm switch when Reel Position Resume icon (B) is highlighted.

NOTE: Checkmark appears indicating system is enabled or disappears indicating system is disabled.

Operation:

H98586-UN-14OCT10

H95091-UN-01NOV10

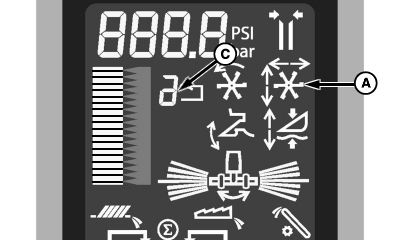

A - Reel Position Resume Icon

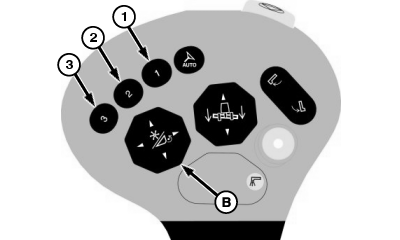

B - Reel Lift and Reel Fore/Aft Switch

C - Activation Button Number

• Properly equipped header (with reel position sensors) is connected to machine and is calibrated.
• Engine is running.
• Road transport disconnect switch is in field position.

NOTE: When harvesting conditions are such that more than one reel position is required (down crop position and standing crop position) the operator can store a reel position for each resume button and move from one reel position to another by selecting desired resume button.

Save Reel Position Resume setpoint by pressing and holding currently selected activation buttons 1, 2, or 3 on multi-function lever for two seconds. Icon (A) flashes indicating setpoint is saved.

Activate Reel Position Resume by pressing activation buttons 1, 2 or 3 on multi-function lever.

Activation button number (C) on display indicates which activation button was selected.

Active Reel Position Resume icon (A) appears on display indicating system is active.

Use reel lift and reel fore/aft switch (B) to obtain desired fore-and-aft position and to obtain reel height position.

Manually moving reel lift and reel fore/aft switch (B) on multi-function lever deactivates reel position.

Press activation buttons 1, 2 or 3 to reactivate system. Reel automatically moves to preselected position.
