Fuel System (Tier 2/Stage II)

CAUTION:

H98377-UN-30SEP10

Fuel Precleaner Filter

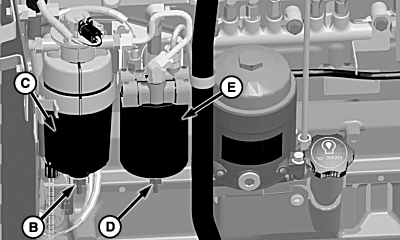

H95378-UN-16FEB10

A - Precleaner Bowl

B - Drain

C - Primary Fuel Filter

D - Drain

E - Secondary Fuel Filter

NOTE: Make sure that precleaner bowl is fully seated to prevent air from entering the fuel system.

Close fuel shut off valve on fuel tank.

Remove precleaner bowl (A) and clean screen if dirty fuel was used.

Open drain (B) to inspect fuel system for water in primary filter (C), (see Service Engine section).

Open drain (D) to inspect fuel system for water in secondary filter (E), (see Service Engine section).

If problem persists change fuel filters, (see Service Engine section).
