Fuse Center

NOTE:

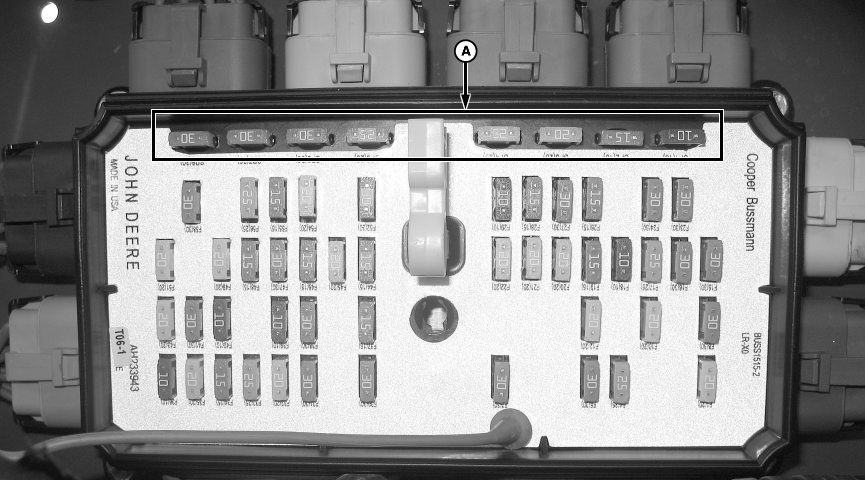

H96642-UN-27MAY10

• A— Spare Fuses
• F1 — Right Power Module 1 (RPM1) Power 3
• F2 — F3 Not Used
• F4 — Right Control Unit 1 (RCU1) Power 2
• F5 — Moisture Meter Power (HMM) (If Equipped)
• F6 — Not Used
• F7 — Right Control Unit 1 (RCU1) Power 1
• F8 — Right Power Module 1 (RPM1) Power 1
• F9 — Not Used
• F10 — Right Power Module 1 (RPM1) Power 2
• F11 — Not Used
• F12 — Right Power Module 1 (RPM1) Power 4
• F13 — F15 Not Used
• F16 — Left Control Unit (LC2) Power 2
• F17 — Left Power Module 1 (LPM1) Power 5
• F18 — Vehicle Control Module (VCM) Power (If Equipped)
• F19 — Right Power Module 1 (RPM1) Power 5
• F20 — Engine Control Unit (ECU) Power 2 (Interim Tier 4/Stage III B)
• F21 — Engine Control Unit (ECU) Power (Non Interim Tier 4/Stage III B)
• F22 — Engine Control Unit (ECU) Power 1 (Interim Tier 4/Stage III B)
• F23 — Auxiliary Out Of Cab Power
• F24 — Left Control Unit (LC2) Power 1
• F25 — Not Used
• F26 — Fuel Transfer Pump
• F27 — Cab Control Unit (CCU)
• F28 — Dosing Pump
• F29 — Steering System Unit (SSU) Power (If Equipped)
• F30 — Left Control Unit (LC1) Power 2
• F31 — Left Control Unit (LC1) Power 1
• F32 — Recirculation Fan Power
• F33 — Cab Power Module (CPMA) Power 5
• F34 — Cab Power Module (CPMB) Power 4
• F35 — Cab Power Module (CPMB) Power 3
• F36 — Automatic Temperature Control (ATC) Power
• F37 — Seat Compressor
• F38 — Miscellaneous Cab Power 3
• F39 — Left Power Module 1 (LPM1) Power 3
• F40 — MWG, Satellite, Radio, Primary Display Unit (PDU)
• F41 — Left Power Module 1 (LPM1) Power 1
• F42 — Not Used
• F43 — Recirculation Fan Power
• F44 — Auxiliary Power Outlets 1 and 2
• F45 — Cab Power 2
• F46 — GreenStar Display, Receiver, and Primary Display Unit (PDU)
• F47 — Left Power Module 1 (LPM1) Power 4
• F48 — Cab Power Module (CPMB) Power 3
• F49 — Cab Power Module (CPMA) Power 3
• F50 — Not Used
• F51 — Left Power Module 1 (LPM1) Power 2
• F52 — Cab Power Module (CPMA) Power 1
• F53 — Not Used
• F54 — Miscellaneous Cab Power 1
• F55 — Dome Light and Power Mirror
• F56 — Cab Power Module (CPMA) Power 2
• F57 — Not Used
• F58 — Cab Power Module (CPMA) Power 4

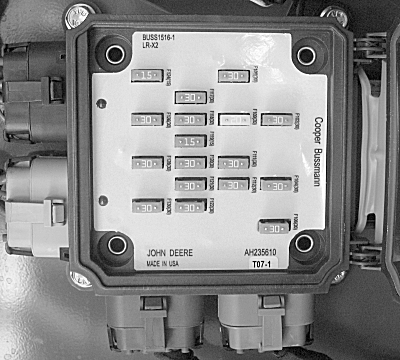

H96643-UN-27MAY10

• F100 — F101 Not Used
• F102 — Cab Power Module 2 (CPM2) Power 1
• F103 — F105 Not Used
• F106 — Cab Power Module 2 (CPM2) Power 2
• F107 — Not Used
• F108 — Left Power Module 2A (LPM2A) Power 4
• F109 — Left Power Module 2A (LPM2A) Power 1
• F110 — F116 Not Used
• F117 — Left Power Module 2A (LPM2A) Power 3
• F118 — Left Power Module 2A (LPM2A) Power 2
• F119 — Right Control Unit 2 (RCU2) Power 1
• F120 — Left Power Module 2B (LPM2B) Power 1
• F121 — Left Power Module 2B (LPM2B) Power 3
• F122 — Left Power Module 2B (LPM2B) Power 2
• F123 — Not Used
• F124 — Right Control Unit 2 (RCU2) Power 2
• F125 — Not Used
• F126 — Left Power Module 2A (LPM2A) Power 5
• F127 — Not Used
• F128 — Left Power Module 2B (LPM2B) Power 4
• F129 — Not Used
• F130 — Left Power Module 2B (LPM2B) Power 5
