High Intensity Discharge (Xenon) Light Bulb (Optional)—Replacing
CAUTION:
H96644-UN-27MAY10

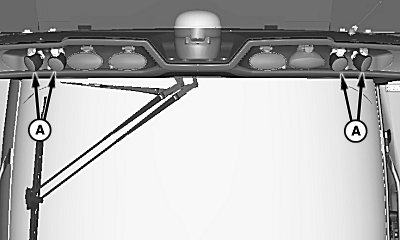

A - HID-Xenon Lights
Avoid serious injury or death from electrical shock or lamp explosion. Lamps are powered by 25,000 volts. Before working on HID-Xenon lights or ballast, ensure that lights are turned OFF, engine is shut OFF, parking brake is set, key is removed, and appropriate eye protection is worn.If lights were previously operated, wait a minimum of five minutes before servicing bulb.
Raise feeder house and lower safety stop before replacing or adjusting headlights.
High intensity discharge (HID) Xenon lights (A) are located on both sides of cab as shown.
H96646-UN-27MAY10
H96634-UN-26MAY10
H96635-UN-26OCT10

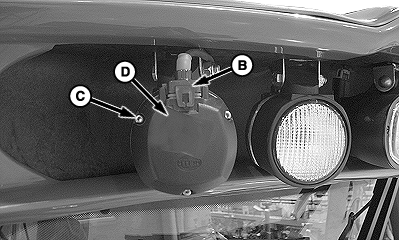

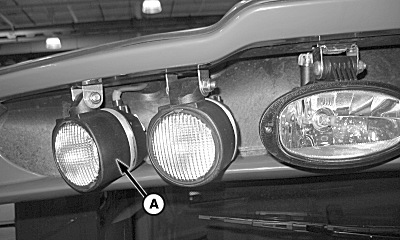

A - Light Housing
B - Connector
C - Socket Head Cap Screws (3 Used)
D - Rear Housing

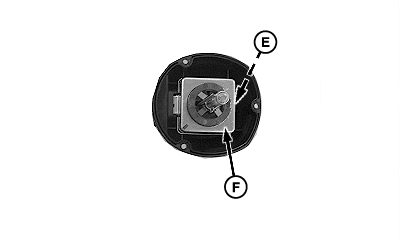

E - Locking Tab
F - HID-Xenon Bulb
Rotate light housing (A) toward outside of cab.Disconnect wiring harness connector (B) from light assembly.
Remove socket head cap screws (C) and remove rear housing (D).
Pry locking tab (E) and remove HID-Xenon bulb (F).
IMPORTANT: Handle bulb by the base and avoid touching glass.
Remove and replace bulb.
Install rear housing to light housing and retain with socket head cap screws.
Connect wiring harness and rotate light housing to previous operating position.
Repeat on remaining lights as needed.
