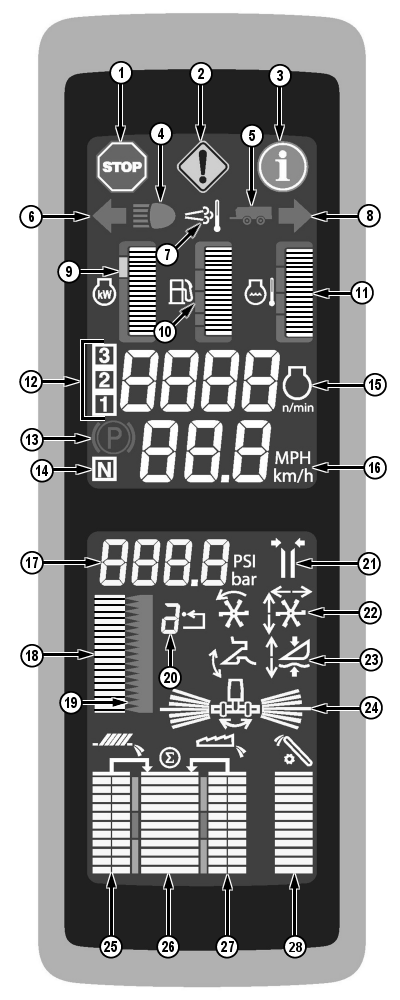

CommandTouch Cab Cornerpost

H94923-UN-01DEC10

(2)—Service Warning Indicator (Yellow): illuminates and flashes when a problem exists with machine. Requires machine be stopped at the earliest convenience. Diagnostic trouble code is shown on armrest display.

(3)—Information Warning Indicator (Gray): illuminates and flashes when diagnostic trouble code is active. Alerts operator to be aware of a condition. When warning is acknowledged, screen message disappears and warning indicator turns OFF.

(4)—High Beam Indicator: shows operator that high beam lights are currently selected.

(5)—Trailer Lights Indicator: illuminates when trailer harness is hooked up and turn signal is applied.

(6)—Left Turn Signal Indicator: shows operator that a left turn is planned.

(7)—Exhaust Filter Cleaning Indicator (Interim Tier 4/Stage III B): illuminates when exhaust filter system is actively performing exhaust filter cleaning.

(8)—Right Turn Signal Indicator: shows operator that a right turn is planned.

(9)—Engine Power Meter Indicator: shows operator percentage of engine power currently being used at any given time.

IMPORTANT: If indicator moves into red region, engine power is maximized and machine could potentially stall. Slow machine until indicator moves back into green and yellow regions.

NOTE: Always operate machine between green and yellow regions to maximize machine and engine performance.

• Green Region (35 to 100%)
• Yellow Region (101 to 107%)
• Red Region (108 to 114%)

(10)—Fuel Gauge Indicator: shows how much fuel is left in the tank. When level reaches 10% (approximately one hour of operation) of remaining fuel, fuel indicator flashes, alarm sounds and low fuel message appears.

Indicator shows zero bars when fuel tank is empty.

(11)—Engine Temperature Indicator: seven to nine bars are displayed for normal operating temperature.

If alarm sounds and engine temperature message appears, stop engine and check problem immediately.

H94923-UN-01DEC10

• 3 Speed Non-ProDrive Machines: shows which gear is currently selected. 1, 2, 3 indicators illuminate depending on gear selection.
• 2 Speed ProDrive Machines shows which range is currently selected. 1 and 2 indicators illuminate depending on gear selection.

(13)—Park Brake Indicator: illuminates when park brake is selected.

(14)—Neutral Indicator: shows that machine is currently in neutral position.

(15)—Engine Speed Indicator: shows engine rpm speed.

(16)—Ground Speed Indicator: shows machine ground speed (km/h or mph).

(17)—Header Height Numeric Display: shows current header height.

(18)—Header Height Position Display: shows current header height position.

(19)—Header Height Setpoint Display: shows operator desired setpoint.

(20)—Header Activation Number: shows currently selected activation button.

(21)—Deck Plate Position Resume: shows system is currently active.

(22)—Dial-A-Speed/Reel Resume:

• Dial-A-Speed (Left Icon): shows system is currently active.
• Reel Resume (Right Icon): shows system is currently active.

(23)—Header Height Resume/Header Height Sensing/Active Header Float:

• Header Height Resume (Left Icon): shows system is currently active.
• Header Height Sensing (Right Icon): shows system is currently active.
• Active Header Float (Right Icon): shows system is currently active.

(24)—Lateral Tilt Display: shows position of feeder house frame.

(25)—Shoe Loss Indicator: shows grain loss from shoe.

(26)—Total Loss Indicator: shows averaged grain loss from shoe and separator area.

(27)—Separator Loss Indicator: shows grain loss from separator area.

(28)—Tailings Volume Indicator: shows volume of tailings return.
