Auxiliary Power Outlet Strip

NOTE:

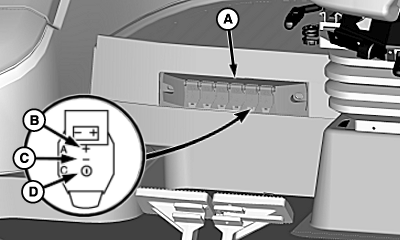

H94452-UN-14MAY10

A - Auxiliary Power Outlet Strip

B - Spade Terminal (Direct Positive Power)

C - Spade Terminal Ground

D - Spade Terminal (Positive, Key Switched ON)

Auxiliary power outlet strip (A) is equipped with six additional electrical outlets which are located at lower rear of right-hand window. These outlets provide key-switched or unswitched power.

Spade terminal (B) is direct positive power at all times.

Spade terminal (C) is ground.

Spade terminal (D) is auxiliary power (key switch ON).
