Service ADVISOR™ Diagnostic Connector

H94453
H94453-UN-14MAY10

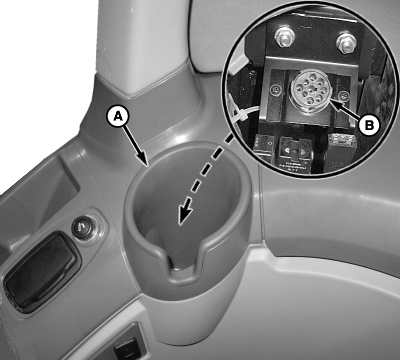

A - Cup Holder

B - Service ADVISOR Diagnostic Connector

Remove cup holder (A) to access Service ADVISOR diagnostic connector (B).

Connector provides the ability to connect a laptop computer to diagnose the machine if needed.

Service ADVISOR is a trademark of Deere & Company

OUO6075,00003F8-19-20100514
