Harvesting Information Screen

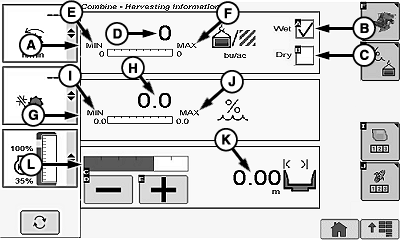

Harvesting Information:

H94540-UN-05OCT10

• Yield (A)
  • Wet (B)
  • Dry (C)
  • Instantaneous (Recording ON) (D)
  • Average (Recording OFF) (D)
  • Minimum (E)
  • Maximum (F)
• Moisture (G)
  • Instantaneous (Recording ON) (H)
  • Average (Recording OFF) (H)
  • Minimum (I)
  • Maximum (J)
• Cut Width (K)
  • Increase/Decrease (L)

H94542-UN-07OCT10

H94543-UN-05OCT10

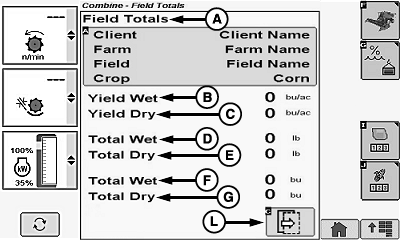

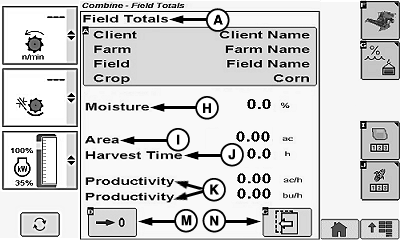

Field Totals:

NOTE: The following appears on GreenStar display (if equipped) instead of on armrest display.

If machine is not equipped with moisture sensor, only the following Field Totals information appears:

• Area
• Harvest Time
• Productivity

• Field Totals (A)
• Yield Wet (B)
• Yield Dry (C)
• Total Wet (Weight lb. or kg) (D)
• Total Dry (Weight lb. or kg) (E)
• Total Wet (Yield Units) (F)
• Total Dry (Yield Units) (G)
• Moisture (H)
• Area (I)
• Harvest Time (J)
• Productivity (K)

• Items to select
  • Next Page Icon (L)
  • Clear Totals Icon (M)
  • Previous Page Icon (N)

H94544-UN-05OCT10

H94545-UN-05OCT10

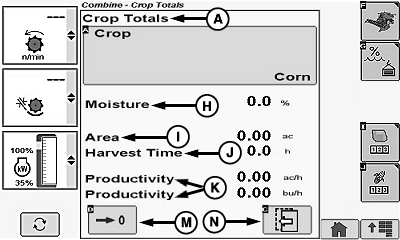

Crop Totals:

NOTE: The following appears on GreenStar display (if equipped) instead of on armrest display.

If machine is not equipped with moisture sensor, only the following Field Totals information appears:

• Area
• Harvest Time
• Productivity

• Crop Totals (A)
  • Yield Wet (B)
  • Yield Dry (C)
  • Total Wet (Weight lb. or kg) (D)
  • Total Dry (Weight lb. or kg) (E)
  • Total Wet (Yield Units) (F)
  • Total Dry (Yield Units) (G)
  • Moisture (H)
  • Area (I)
  • Harvest Time (J)
  • Productivity (K)
• Items to select
  • Next Page Icon (L)
  • Clear Totals Icon (M)
  • Previous Page Icon (N)
