Change Crops and Seed Sensitivity Size

Crop Menu:

H94473-UN-31MAR10

Combine Setup Icon

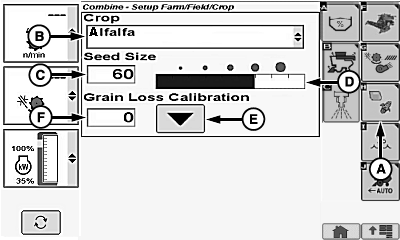

H94615-UN-05OCT10

A - Crop Setup Icon

B - Crop Menu

C - Seed Size

D - Bar Graph

E - Calibration Icon

F - Grain Loss Calibration Value

Touch or press confirm switch when combine setup icon is highlighted.

Touch or press confirm switch when crop setup icon (A) is highlighted.

Touch or press confirm switch when crop menu (B) is highlighted.

Crop menu displays the following:

Alfalfa	Lentils	Rye
Barley	Lupins	Safflower
Barley - Spring 1	Millet	Sorghum
Barley - Winter 1	Mustard	Soybeans
Canola	Navy Beans	Sunflower
Chickpeas	Oats	Triticale 1
Corn	Peas	Wheat 1
Edible Beans	Popcorn	Wheat-Spring
Flax	Rape Seed 1	Wheat-Winter
Grass Seeds	Rice

Once desired crop is chosen, touch or press confirm switch.

Seed Size:

Touch or press confirm switch when seed size (C) is highlighted.

Touch plus (+) or minus (-) symbol or rotate selection dial until desired seed size is shown on bar graph (D).

Small Seed (Default 38)	Medium Seed (Default 50)	Large Seed (Default 70)
Alfalfa	Barley	Chickpeas
Canola	Barley - Spring 1	Corn
Flax	Barley - Winter 1	Edible Beans
Grass Seeds	Lentils	Lupins
Millet	Popcorn	Navy Beans
Mustard	Safflower	Peas
Oats	Sorghum	Soybeans
Rape Seed 1	Wheat	Sunflowers
Rice
Rye
Triticale 1

Once desired seed size is chosen, touch or press confirm switch.

Enter Grain Loss Calibration:

Adjust machine and header to acceptable loss levels for particular crop and condition.

Touch or press confirm switch when calibration icon (E) is highlighted.

NOTE: This enters current operating characteristics into memory and centers total loss activity indicator on cornerpost.

Calibration Reference Number:

Touch or press confirm switch when grain loss calibration value (F) is highlighted.

Non-Touchscreen: Rotate selection dial until desired calibration reference value is shown. Press confirm switch to save calibration reference value.

Touchscreen: Touch grain loss calibration reference value. Enter desired calibration reference number on numeric display. Touch enter icon to save calibration reference value.
