Cleaning Fan Speed Adjust Switch

H94670-UN-27JAN10

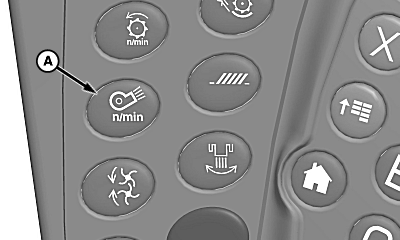

A - Cleaning Fan Speed Adjust Switch

1. Engage separator.

2. Press cleaning fan speed adjust switch.

3. Touch plus (+) or minus (-) symbol or rotate selection dial to increase or decrease cleaning fan speed.

4. Display shows operator adjustment settings.

Fan speed motor has a thermal (heat) shut off that stops the motor from working if any of the following happen:

• Switch is used continuously for more than two or three minutes.
• Adjustment system is against stop while motor is still trying to change speed.
• Excessive binding or dragging in linkage.

If any of the above causes are suspected, clean and adjust as necessary.

NOTE: Allow motor to cool 10 to 15 minutes before trying switch again.
