ClimaTrak Inlet Panel—Cleaning

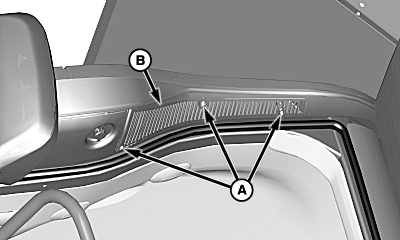

H94836-UN-13OCT09

A - Screws

B - Panel

Recommended Service Interval
Clean Cab Roof Air Inlet Panel	Daily Or As Required

Remove screws (A) and remove panel (B).

NOTE: Air is brought in through the left-hand side panel only.

Clean with compressed air or water.
