Dial-A-Speed System

NOTE:

H96245-UN-03MAY10

Header Setup Icons

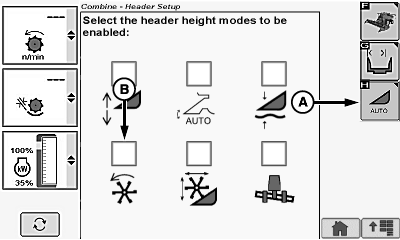

H95938-UN-05OCT10

Draper/Platform/Belt Pickup Display

A - Automatic Header Height Modes Icon

B - Dial-A-Speed Icon

Allows operator automatic control of operating speed for reel or belt pickup headers. Operating speed is a ratio of machine ground speed to reel or belt speed.

System operates with any header equipped with the appropriate reel or belt pickup speed sensors.

Enable/Disable System:

Touch or press confirm switch when header setup icon is highlighted.

Touch or press confirm switch when automatic header height modes icon (A) is highlighted.

Touch or press confirm switch when Dial-A-Speed icon (B) is highlighted.

NOTE: Checkmark appears indicating system is enabled or disappears indicating system is disabled.

Operation:

H98584-UN-14OCT10

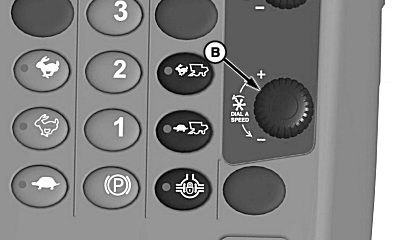

H95084-UN-27JAN10

A - Dial-A-Speed Icon

B - Dial-A-Speed Dial

• Properly equipped header is connected to machine.
• Engine is running.
• Road transport disconnect switch is in field position.
• Header and separator are engaged.
• Dial-A-Speed system enabled.
• Ground speed greater than 0.25 km/h (0.16 mph).

NOTE: Dial-A-Speed system will not operate if ground speed is less than 0.25 km/h (0.16 mph).

Dial-A-Speed icon (A) appears on display indicating system is active.

Ratio of ground speed to reel or belt pickup speed is adjusted using Dial-A-Speed dial (B). Turn dial towards plus (+) symbol to increase reel or belt pickup speed or towards minus (-) symbol to decrease reel or belt pickup speed.

Display shows current speed ratio setting. The larger the ratio number selected, the faster the reel or belt pickup operates with respect to machine ground speed.

Change Minimum Reel or Belt Pickup Speed

H96245-UN-03MAY10

Header Setup Icons

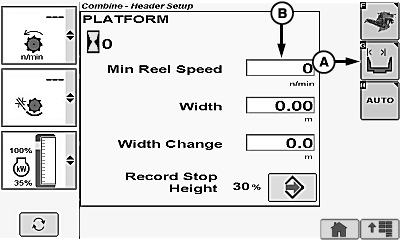

H95085-UN-05OCT10

A - Header Width Setup Icon

B - Minimum Reel or Belt Pickup Speed Box

Touch or press confirm switch when header width setup icon (A) is highlighted.

Touch or press confirm switch when minimum reel speed or belt pickup speed box (B) is highlighted.

Touch plus (+) or minus (-) symbol or rotate selection dial until desired value is shown in box.

NOTE: Minimum reel or belt pickup speed has a low range of 1 rpm.
