Chaffer/Sieve Adjust Switch

H94676
H94676-UN-27JAN10

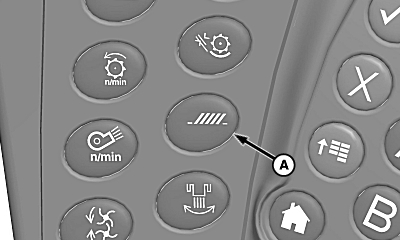

A - Chaffer/Sieve Adjust Switch

Chaffer/Sieve adjust switch increases or decreases the amount chaffer/sieve clearance.


Chaffer Adjust

  1. Press switch once to adjust chaffer clearance.

  2. Touch plus (+) or minus (-) symbol or rotate selection dial to increase or decrease chaffer clearance.

  3. Display shows operator adjustment settings.


Sieve Adjust

  1. Press switch twice to adjust sieve clearance.

  2. Touch plus (+) or minus (-) symbol or rotate selection dial to increase or decrease sieve clearance.

  3. Display shows operator adjustment settings.
